Double Pieces Semi-automatic Stitching Machine for Corrugated
Where to buy?
- Product Description
Parameters |
GSD-1600 |
GSD-2000 |

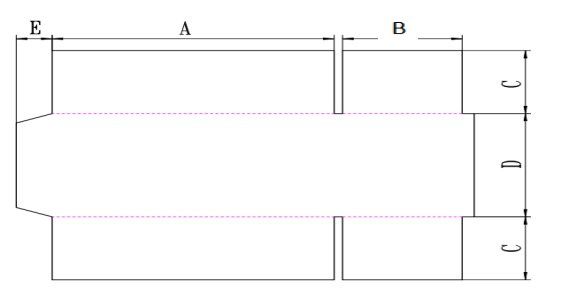

Max.sheet size(A+B)*2(mm) |
3200 |
4000 |
Min.sheet size(A+B)*2(mm) |
1060 |
1060 |
Max.length A :mm |
1450 |
1850 |
Min.length A:mm |
350 |
350 |
Max.width B:mm |
800 |
1000 |
Min width B :mm |
150 |
150 |
Min.height(C+D+C)(mm) |
400 |
400 |
Max.C(mm) |
400 |
500 |
Min.C(mm) |
25 |
25 |
Max.D(mm) |
2000 |
2000 |
Min .D(mm) |
80 |
80 |
Max.E(mm) |
110 |
40 |
Stitching distance:mm |
30-120 |
30-120 |
Feeding Paper height |
900 |
900 |
Stitching No. |
2-99 |
2-99 |
Working speed(stitching/min) |
500 |
500 |
Weight (T) |
2 |
2.5 |
Feature:
- It can fit for 3 layer,5 layer and 7 layer carton paperboard(7 layer required special instructions).
- It both fits for single piece and double pieces carton.
- It can work for strengthen the nails, single nail, double row nail.
- Fast change the size, order size is adjusted by computer, Full electric control, Just need 1 minute. save labor time.
- Adopts 4 servo motors( two head motor and two control screw pitch motor)
- Stitching distance ranged from 30 to 120mm,adjusted by computer.
- Any machine fault will display on screen.
- There are counting function at the end of the machine ,it can output based on setting.
Configuration:
No |
Name |
Brand |
Origin |
Ref |
01 |
Servo motor of stitching head |
Yaskawa/Mitsubishi |
Japan |
|
02 |
Servo motor of feeding unit |
Yaskawa/Mitsubishi |
Japan |
|
03 |
PLC |
FATEK |
Taiwan |
|
04 |
Contactor and Circle Breaker |
Schneider |
France |
|
05 |
Gear Reducer |
TDT |
Jiangsu, China
|
|
06 |
Worm Speed Reducer |
ZHENYU |
Hanzhou, China |
|
07 |
Photoelectric, switch |
Autonics |
Korea |
|
08 |
Touch screen |
MCGS |
Shenzhen, China |
|
09 |
Intermediate relay |
Schneider |
Franch |
|
10 |
Nail head |
|
Import Taiwan parts, domestic assembly |
Resistant abrasion |
11 |
Cylinder, solenoid valve |
AirTAC |
Zhejiang, China |
|
12 |
Knife |
|
Tungsten alloy |
Resistant abrasion |
13 |
Bottom die |
|
Tungsten alloy production |
Corrosion resistant |
14 |
Bearing |
NSK |
Japan |
|
