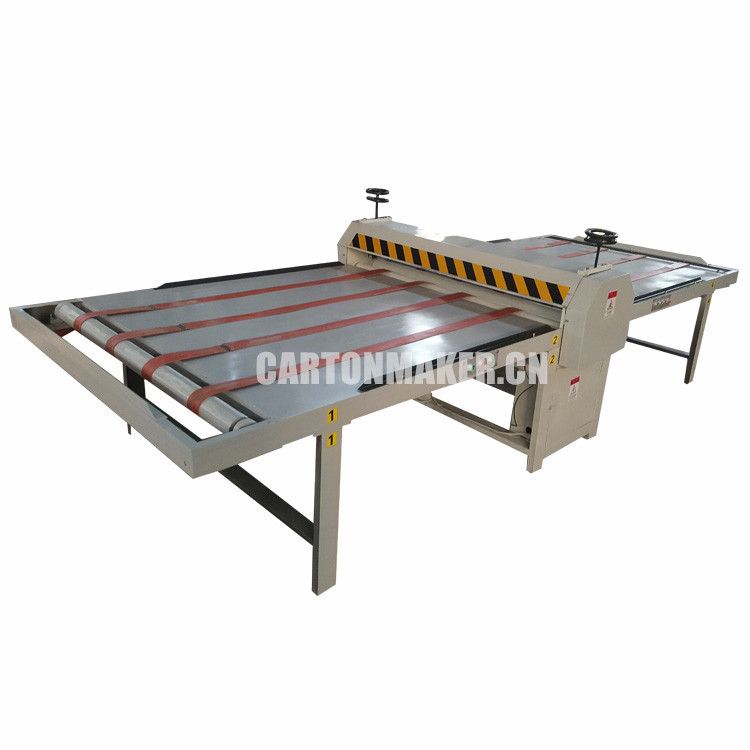

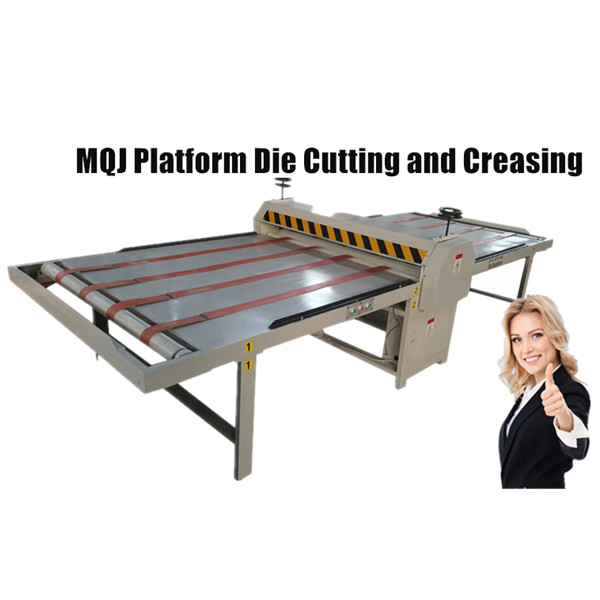

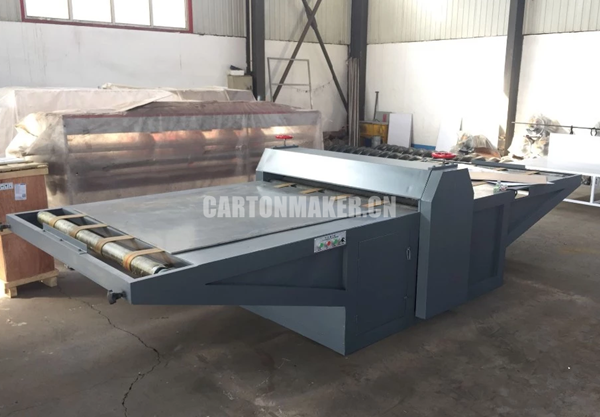

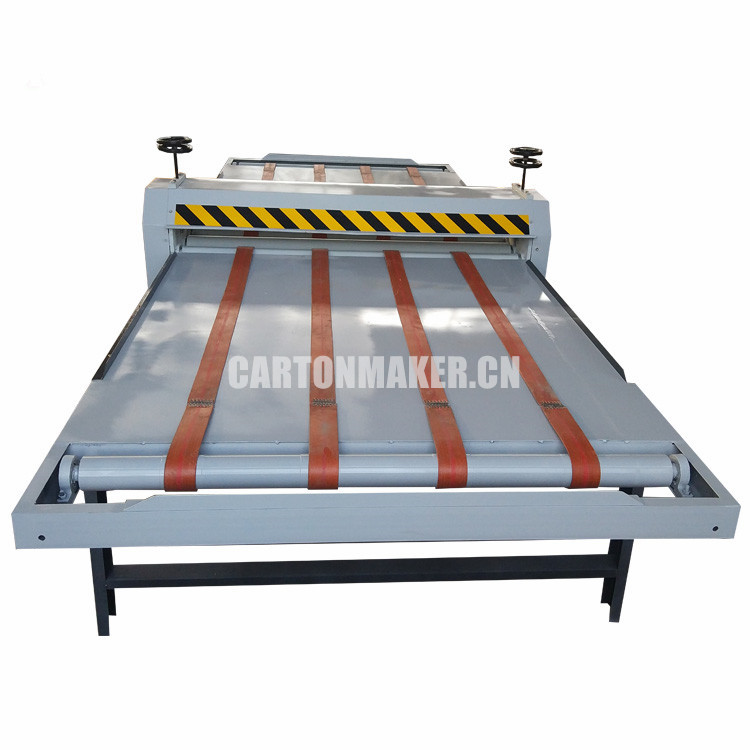

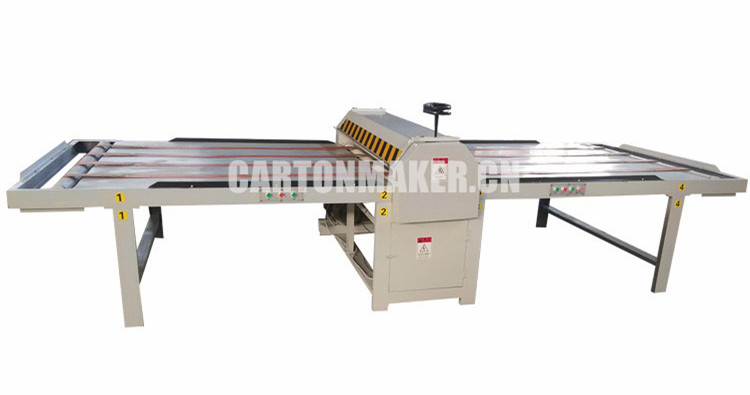

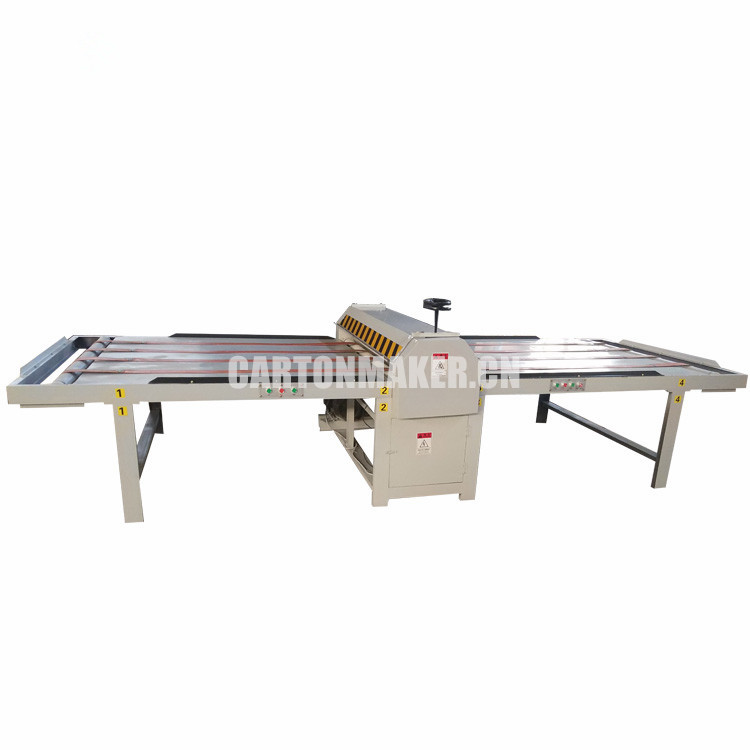

MQJ-1600 Platform Die Cutting and Creasing Machine for Corrugated Paperboard
Where to buy?
- Product Description
Application:
The platform die cutting machine is suitable for paper cardboard, corrugated cardboard, plastic corrugated sheet, carton inside clapboard, leather, rubber, asbestos sheet, and so on. Any sheet materials within thickness 1~11mm which is not so hard.
Features:
- The platform die cutting machine is an ideal equipment for the production of high grade special-shaped carton box, color box, small box, carton inside clapboard, paper, leather, rubber, plastic sheet, and so on.
- It can finish the cutting of edge, corner, punching, slotting, creasing etc in one time.
- Stable and accurate. No burr, clear and neatness and easy for operation.
Technical Parameters:
Model | Suggested Max Die Cutting Size | Speed | Power | Machine Size | Weight |
MQJ-1200 |
800*800MM | 0-30Sheets/Min | 1.5KW | 3500*1500*1250MM | 650KG |
MQJ-1400 | 1000*1000MM | 0-30Sheets/Min | 1.5KW | 3500*1700*1250MM | 750KG |
MQJ-1600 | 1200*1500MM | 0-30Sheets/Min | 2.2KW | 4500*1900*1250MM | 850KG |
MQJ-1800 | 1400*1700MM | 0-25Sheets/Min | 2.2KW | 5000*2100*1250MM | 900KG |
MQJ-2000 | 1600*1900MM | 0-25Sheets/Min | 2.2KW | 5300*2300*1250MM | 1200KG |
MQJ-2200 | 1800*2000MM | 0-25Sheets/Min | 2.2KW | 5500*2500*1250MM | 1400KG |
MQJ-2500 | 2100*2700MM | 0-20Sheets/Min | 2.2KW | 7000*2850*1250MM | 1800KG |
Note:
We have two machine designs for you

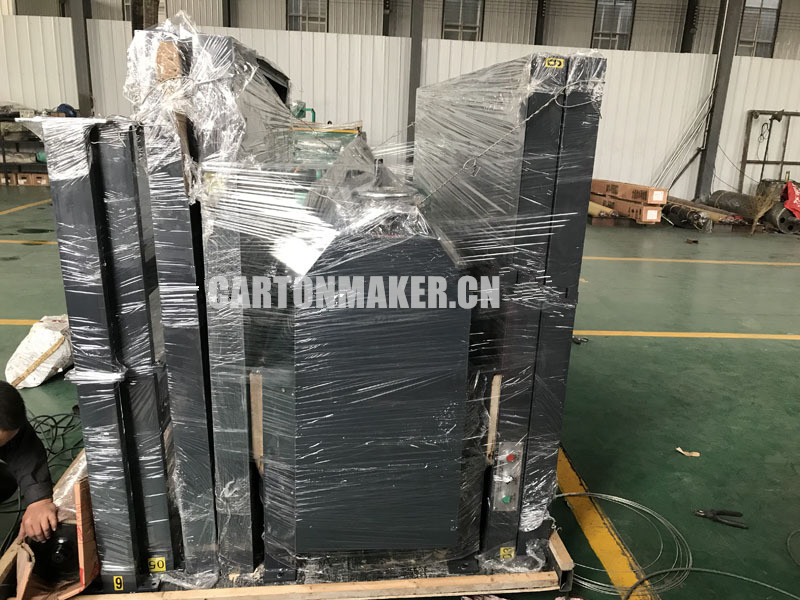

①Folding design can be chosen, with smaller packing size, lower shipping cost.
② Non folding design, with bigger packing size.
