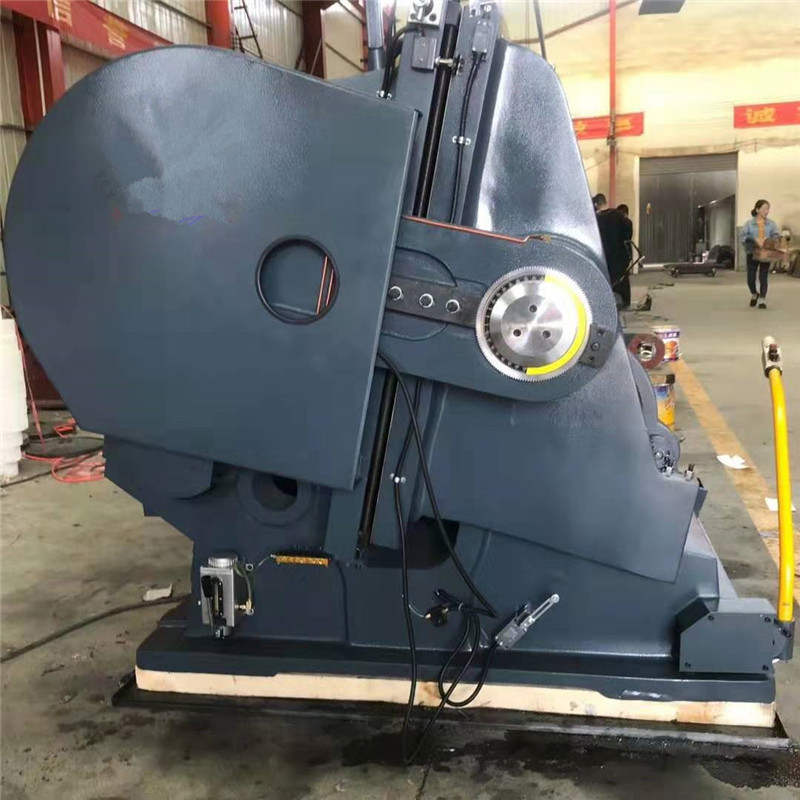

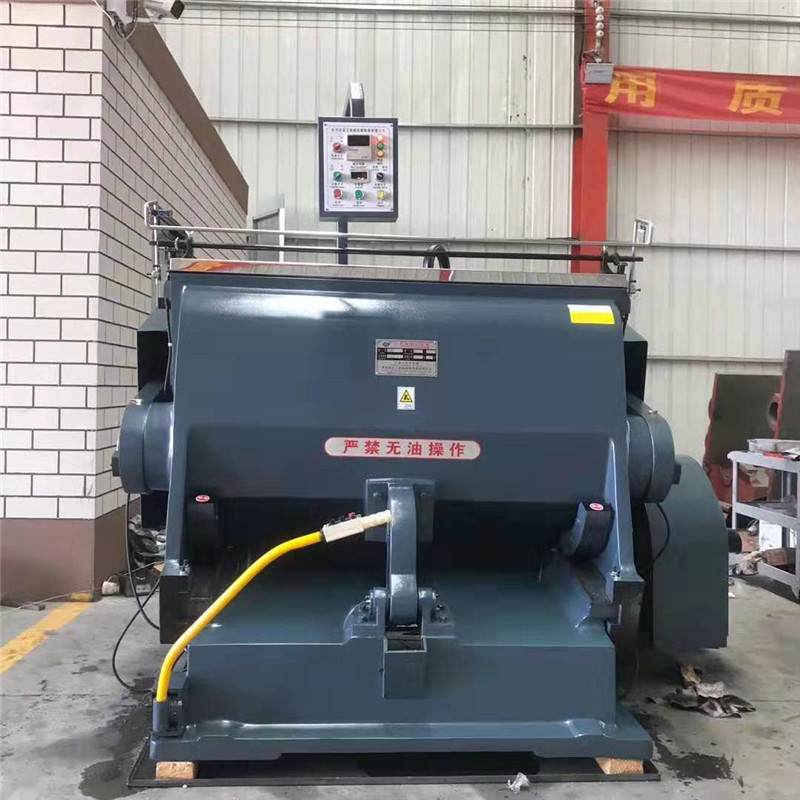

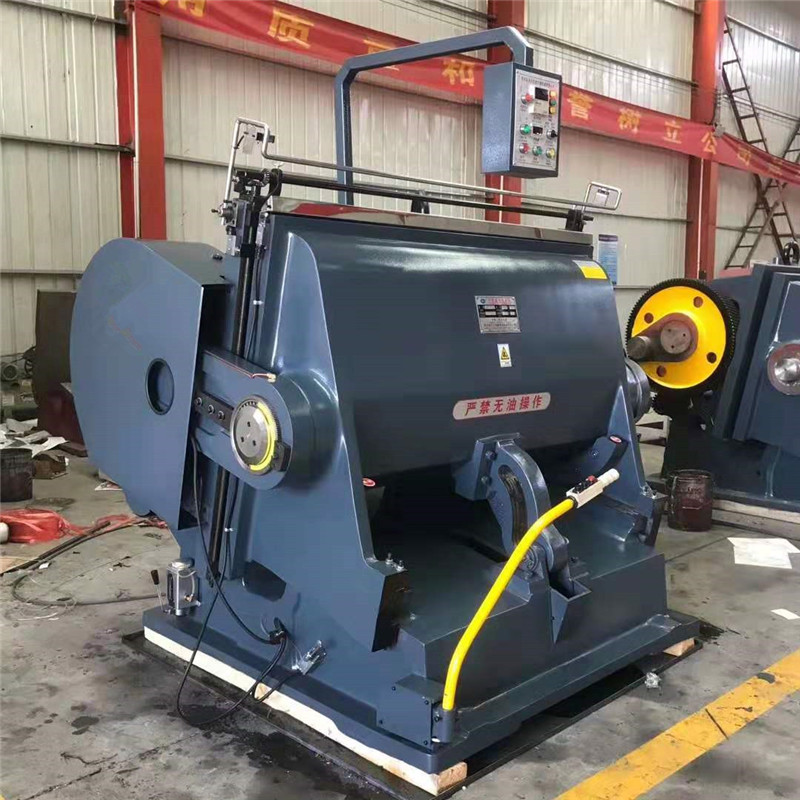

ML Die Cutter Punching and Creasing Machine for Corrugated Cardboard Pizza Boxes
0$USD 0$USD
Where to buy?
- Product Description
Introduce:
Aiming at utmost client satisfaction, we are offering die punching creasing machine to the clients. We are a quality-centric organization and thus, fabricated this machine using ultra-grade raw material with assistance of our highly adroit professionals. It is qualitative as per the international norm and assured to give an excellent performance. For its excellent functionality, it is widely installed in various industries for punching card boards, corrugated boards and papers.
Feature:
Technical Parameters:
Aiming at utmost client satisfaction, we are offering die punching creasing machine to the clients. We are a quality-centric organization and thus, fabricated this machine using ultra-grade raw material with assistance of our highly adroit professionals. It is qualitative as per the international norm and assured to give an excellent performance. For its excellent functionality, it is widely installed in various industries for punching card boards, corrugated boards and papers.
Feature:

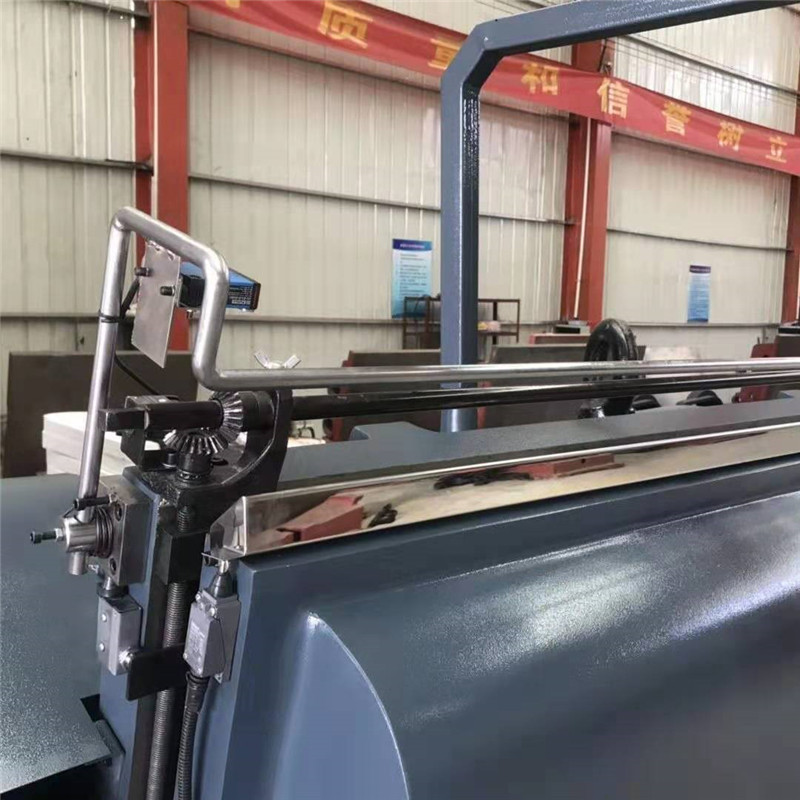

1) Equip with four insurance parts and four functions. The insurance part including gantry insurance, triangle insurance, hand shank insurance and automatic light-operated insurance to makes the machine safety and reliable.
2) The brake clutch adopts electric suction plate brake clutch to keep the braking sensitive and reliable.

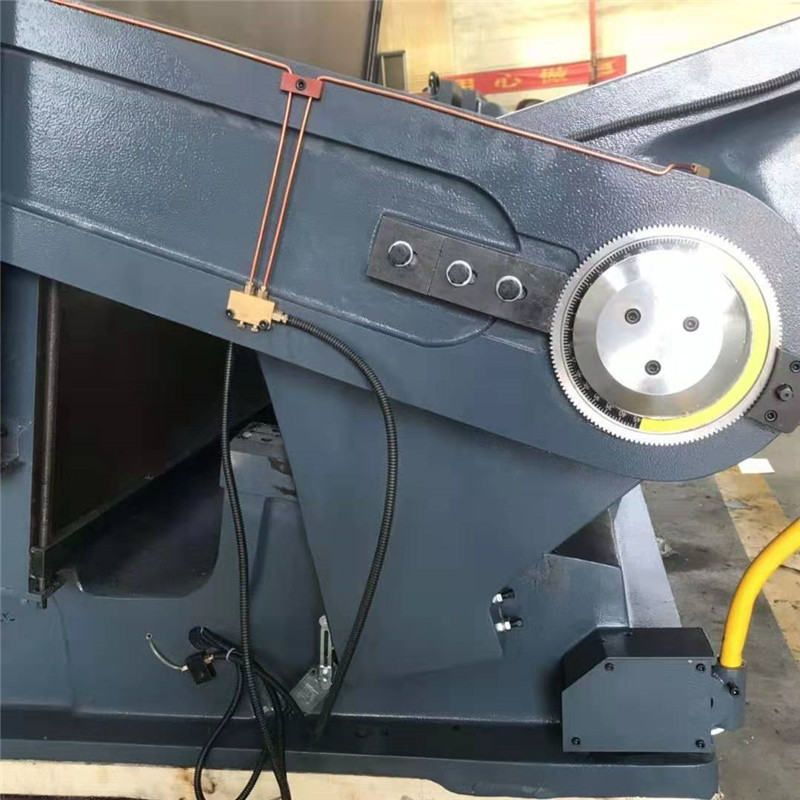

3) Adjustable template makes the plate loading, unloading more easily. Disposition: Centralized oil supplying,.
4) Three functions including single piece pressing cutting, continuous pressing cutting and time-delay when start machine, the delay time can be adjusted.
Components and Place of Origin:
Item | Place of Origin |
Copper bush | Tin bronze |

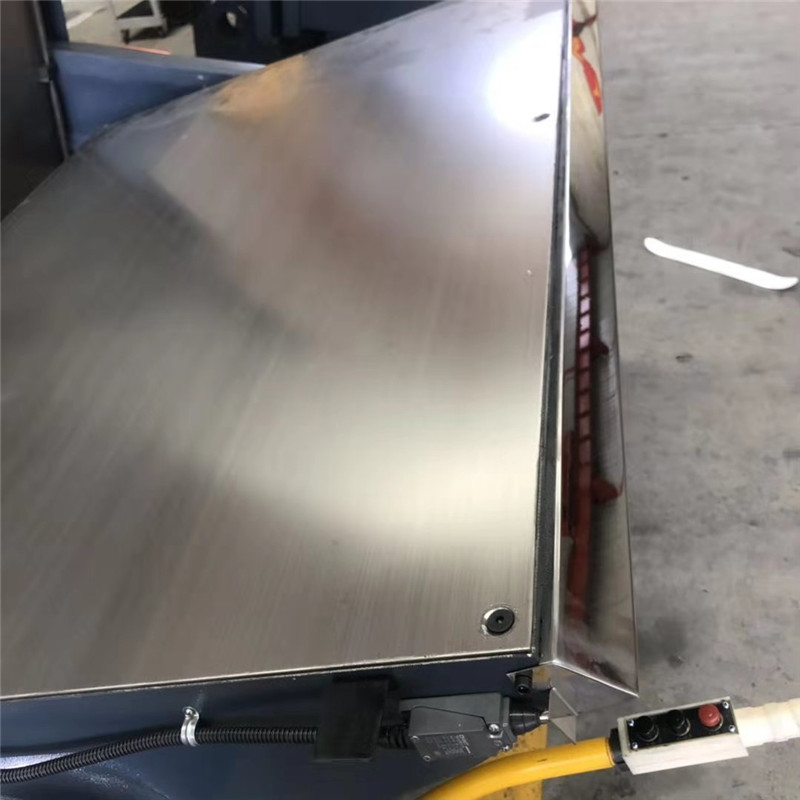

Steel plate | Stainless steel(3mm) |
Motor | MENGNIU(CHINA) |
Electric | CHNT |
Bearing | HRB |
Eccentricity | Cast Steel(Other manufactures use Ductile Cast Iron) |
Technical Parameters:
Model | ML750 | ML930 | ML1100 | ML1200 | ML1300 | ML1400 | ML1500 | ML1600 |
Max. Rule Area | 750x520 | 930x660 | 1100x800 | 1200x820 | 1300x920 | 1400x1000 | 1500x1050 | 1600x1150 |
Working Speed(pcs/min) | 25±3 | 20±3 | 20±2 | 20±2 | 18±2 | 18±2 | 18±2 | 18±2 |
Motor | 2.2kw | 3kw | 5.5kw | 5.5kw | 7.5kw | 7.5kw | 7.5kw | 10.5kw |
Weight | 1800kg | 3000kg | 4500kg | 4900kg | 5600kg | 6500kg | 7500kg | 8500kg |
Overall Dimensions(L×W×H) | 1300x1300x1700 | 1780x1590x1450 | 1800x1900x1480 | 1800x2000x1520 | 1800x2120x1600 | 1800x2220x1650 | 1800x2300x1700 | 1800x2420x1750 |
Creasing Die Cutting Length | <15m | <25m | <32m | <35m | <40m | <40m | <50m | <50m |
