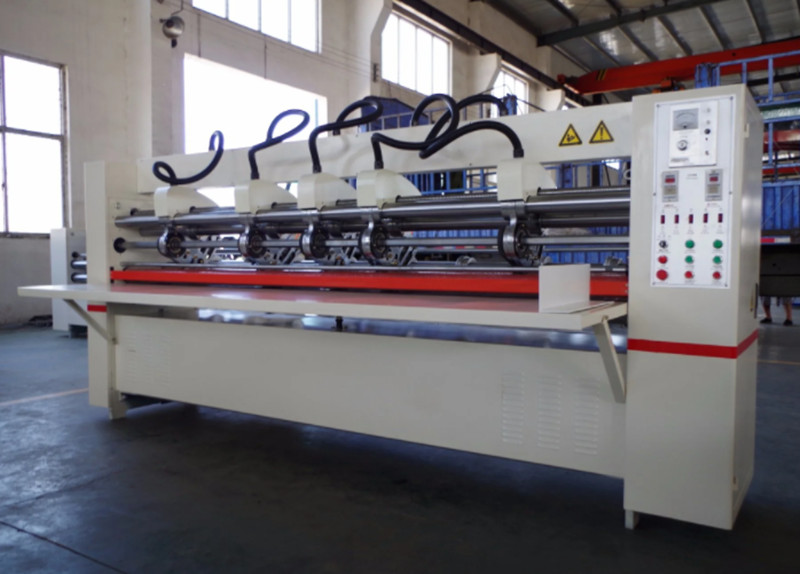

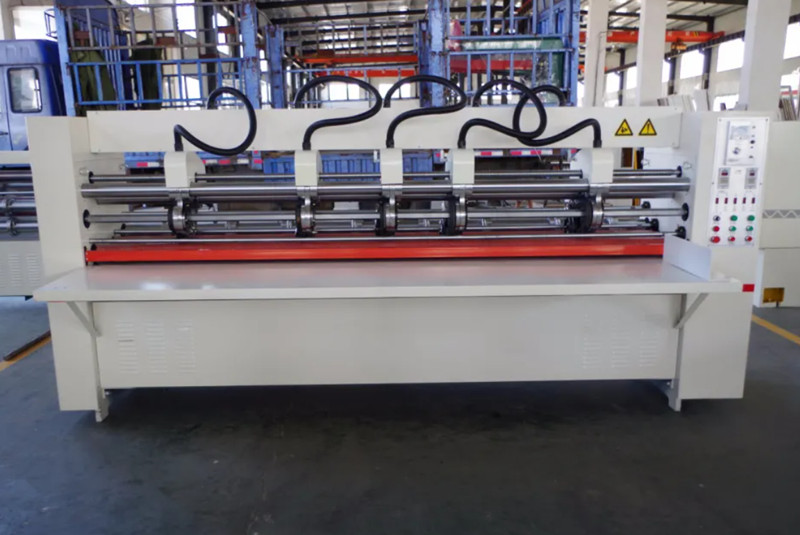

Offline 2500 Model Manual Feeder Type Thin Blade Slitter Scorer For Corrugated Cardboard Slitting Creasing

0$USD 0$USD

I. General introduction

Thin blade slitter scorer has two main types: one kind is online slitter scorer can match with corrugated production line; another kind is offline slitter scorer can work separately for corrugated sheets slitting creasing before making cartons.



For the offline slitter scorer mainly has two types about the feeder: manual feeder and automatic feeder.



And for the blades and scorers quantity, can make as customer working need. Blades and scorers also has manual adjustment and electrical adjustment.



II. Function and Features

1. Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.

2. Adopt 8 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard machining to 260mm.

3.  8 shafts with front-scoring feeding,back double rubber rollers for paper leading, running more steady.

4. Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.

5. Grinding part: adopt manual type grinding , it could be grinding when working, improve work efficiency. Option: blade pneumatic grinding.

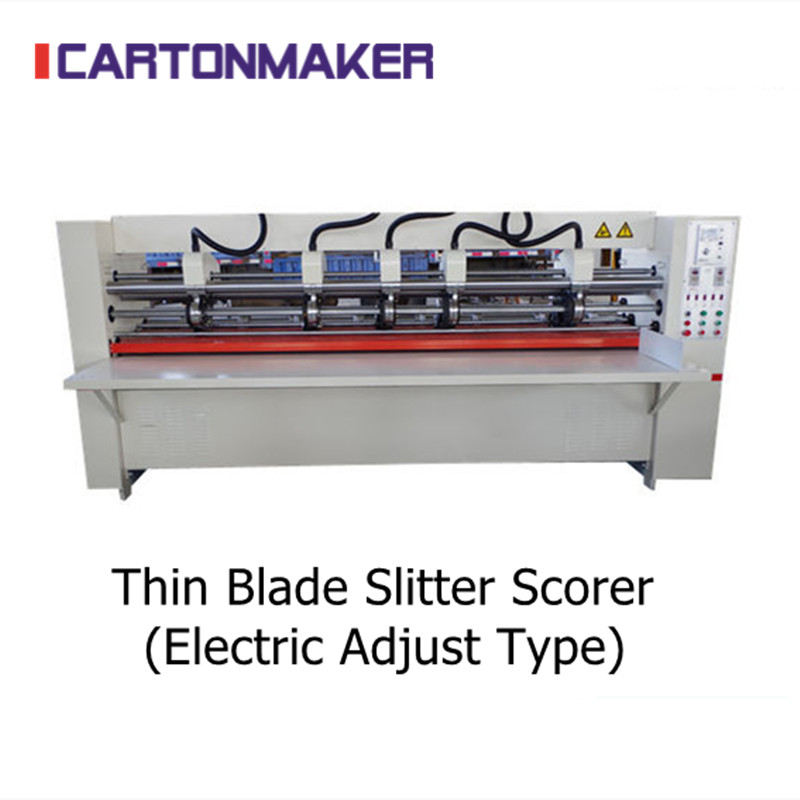

6. Electric adjusted the space of slitter blade and auto pneumatic locking, easy to operate, improve the efficiency.

7. Double guide smooth shafts, operate stably; inlay PU ring seal, clean and dust-proof.



III. Technical parameters

TYPE CS-E 1800 CS-E 2000 CS-E 2200 CS-E 2500 CS-E 2700 CS-E 3000
Effective width 1600mm 1800mm 2000mm 2300mm 2500mm 2800mm
Speed 140m/min 140m/min 140m/min 140m/min 140m/min 140m/min
Total power 3kw 4kw 5kw 5kw 5kw 5kw
Min. Slitter-spacing 130mm 130mm 130kw 130kw 130kw 130mm
Min. Score-spacing 30mm 30mm 30mm 30mm 30mm 30mm
Min. Paper length 260mm 260mm 260mm 260mm 260mm 260mm
Dimensions L x W x H (mm) 2450x770x1700 2650x770x1700 2850x770x1700 3150x770x1700 3350x770x1700 3650x770x1700
Slitting & scoring composed type

3 x blade with 4 x scoring,

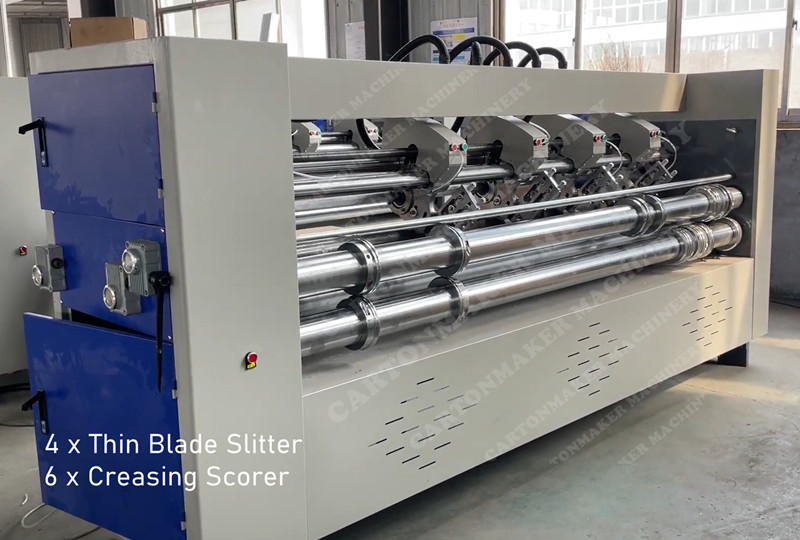

4 x blade with 6 x scoring ,

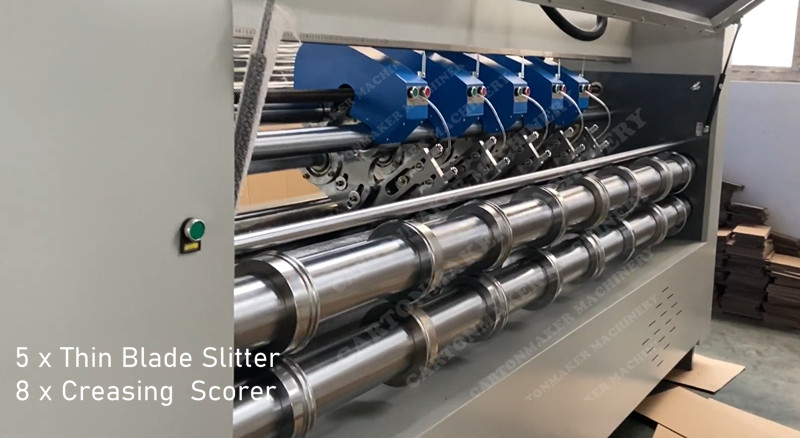

5 x blade with 8 x scoring
