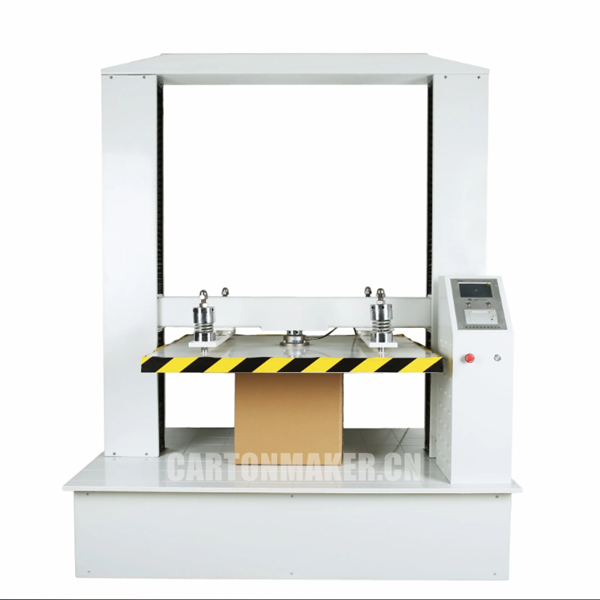

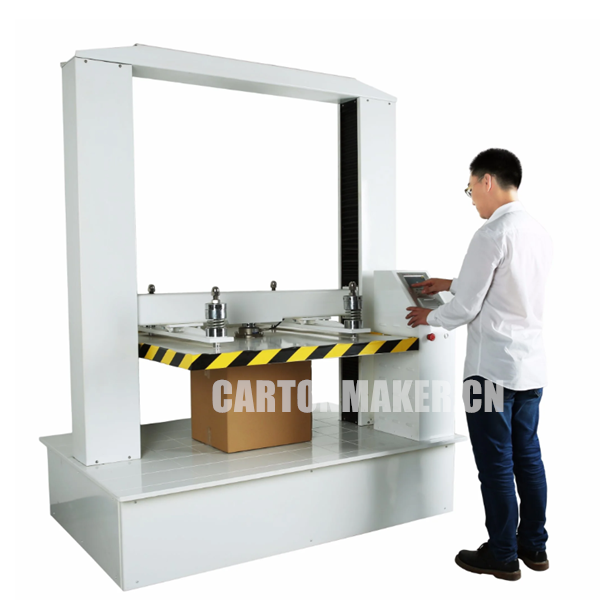

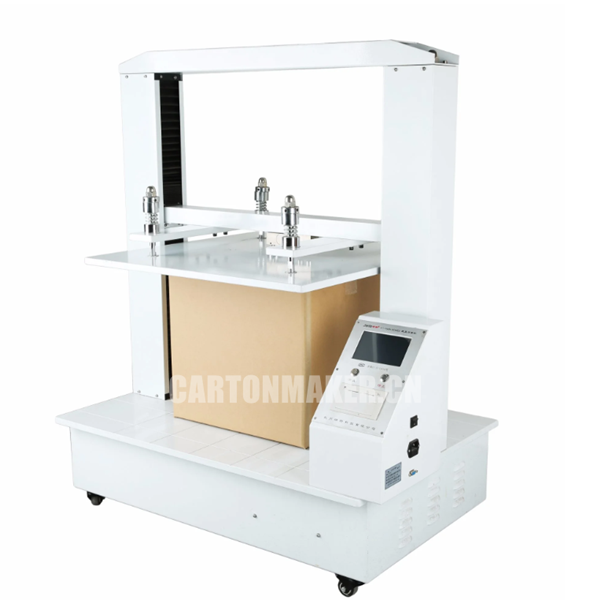

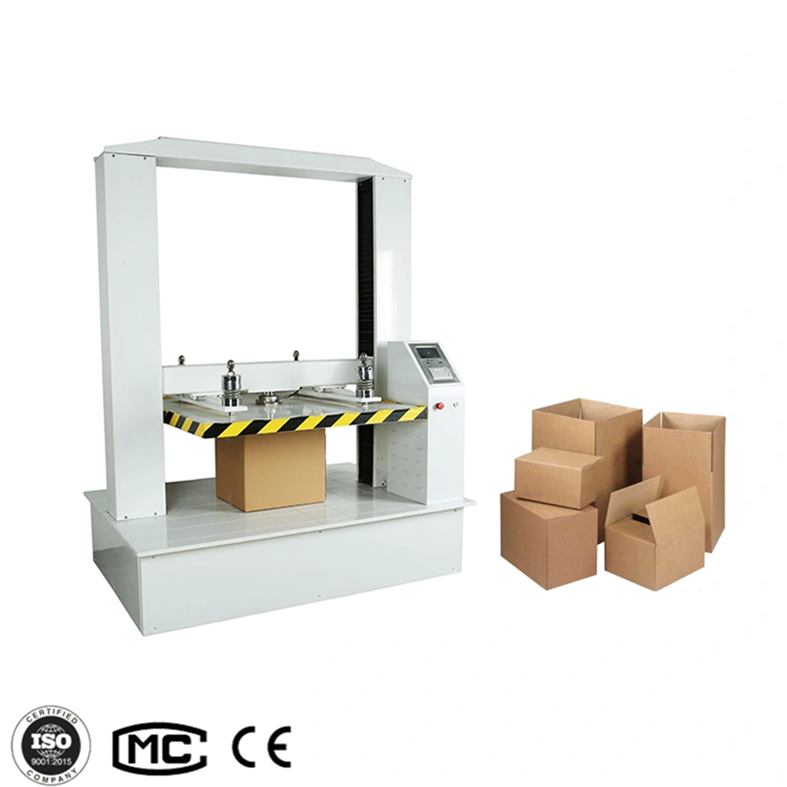

Corrugated Carton Box Compression Tester Touch Screen Operation Container Carton Compressive Strength Tester
0$USD 0$USD
Where to buy?
- Product Description
Introduction:
This compression tester is a testing machine specially used to test the compression resistance of cardboard boxes. It is suitable for the compression test of packaging parts such as corrugated boxes and honeycomb boxes. It is also suitable for compression test of containers such as plastic drums (edible oil, mineral water), paper drums, paper boxes, paper cans, container drums (IBC barrels).
Function:
① Measure compression strength
② Stacking strength
③ Constant value compression strength test.
Application:
Carton,beer box,paper tube,paper cup, color box,milk box, etc. Instant noodles for food and beverage packaging, cosmetic packaging, beer packaging, grain and oil packaging, etc.
Parameter:
Feature:
This compression tester is a testing machine specially used to test the compression resistance of cardboard boxes. It is suitable for the compression test of packaging parts such as corrugated boxes and honeycomb boxes. It is also suitable for compression test of containers such as plastic drums (edible oil, mineral water), paper drums, paper boxes, paper cans, container drums (IBC barrels).
Function:
① Measure compression strength
② Stacking strength
③ Constant value compression strength test.
Application:
Carton,beer box,paper tube,paper cup, color box,milk box, etc. Instant noodles for food and beverage packaging, cosmetic packaging, beer packaging, grain and oil packaging, etc.
Parameter:
| Power Supply | 220±V10% 50Hz 1000~2000W(can be customized) |
| Working Environment | (10~35)ºC,Humidity≤85% |
| Measuring Range | (0-5)kN /(0-10)kN/(0-20)kN/(0-30)KN/(0-50)kN |
| Resolution | 1N |
| Indication Accuracy | ±1% |
| Measured Area | 600×600,800×800,1000×1000 mm |
| Work Capacity | 600,800,1000 (According require to make) mm |
| Press Speed | 10 (self set)mm/min |
| Depth of Parallelism Between Top Board to Lower Platen | ≤1mm(600*600mm)/≤1.5mm(800×800mm)/≤2 (1000×1000mm) |
| Return Speed | 1~120(self set)mm/min |
| Built-in thermal printer | |
| Communication interface | RS232 |

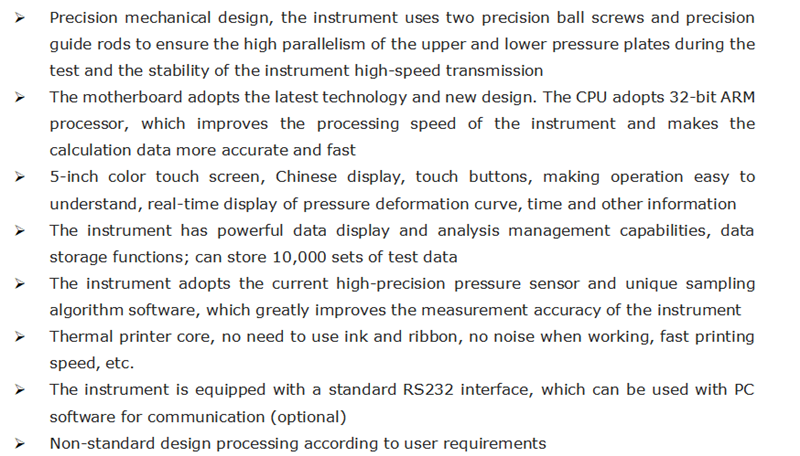

Feature:
Video
