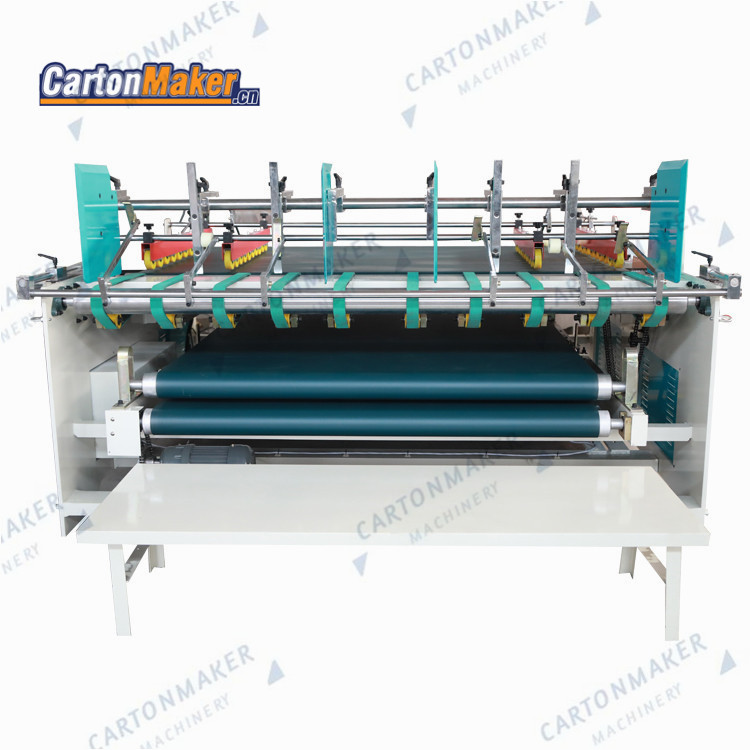

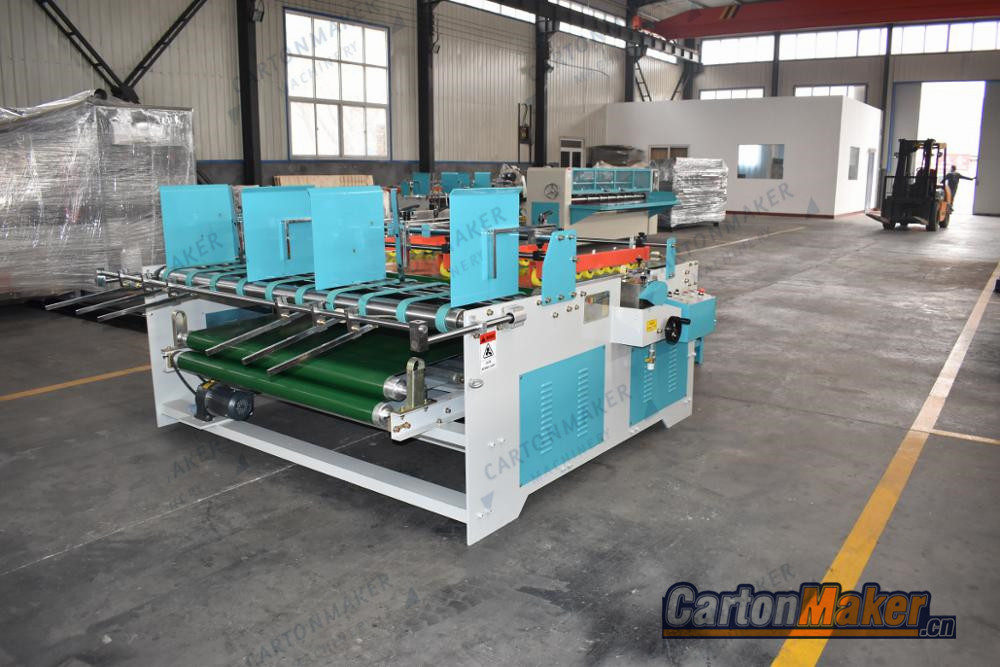

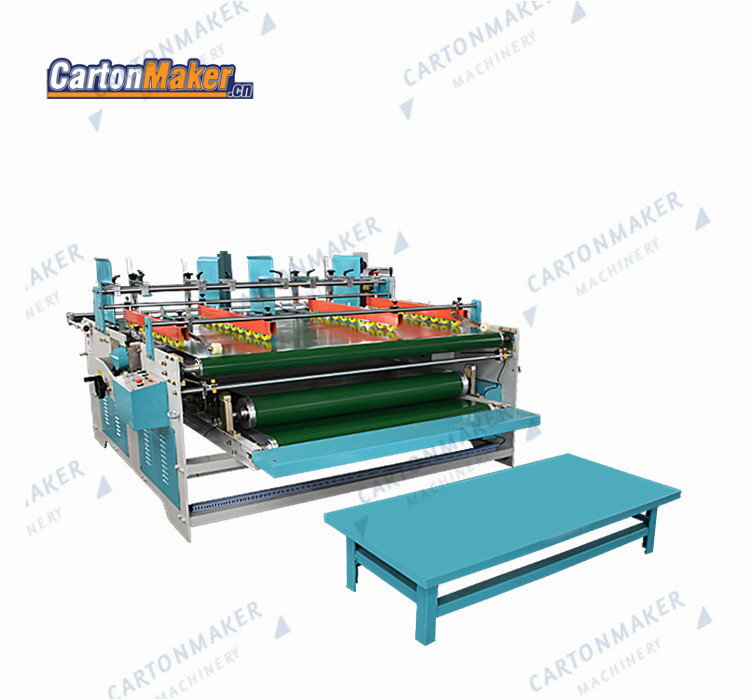

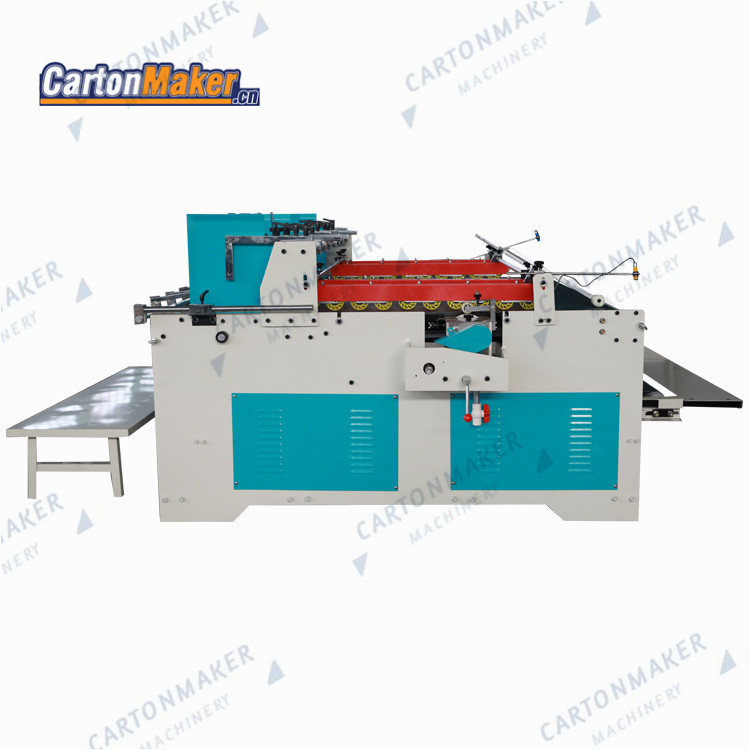

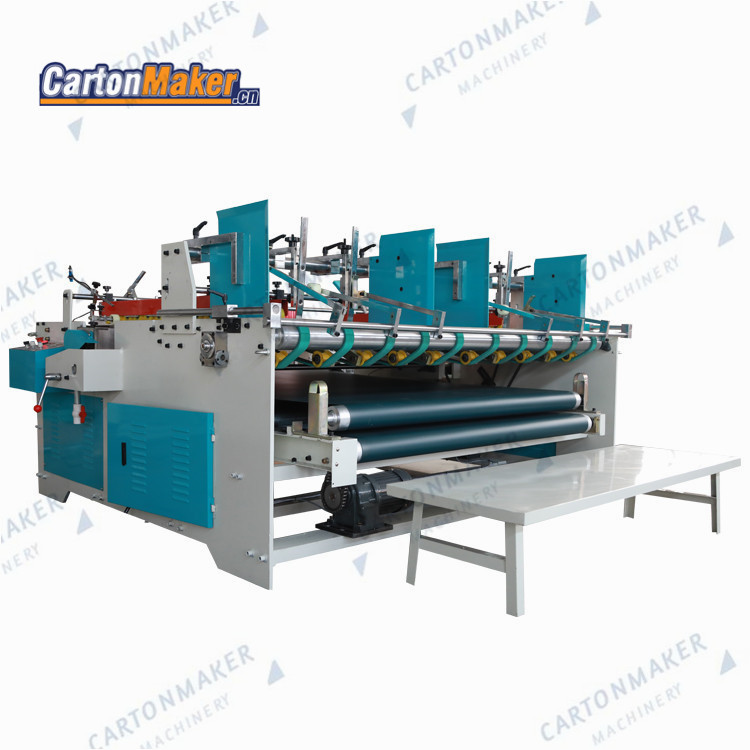

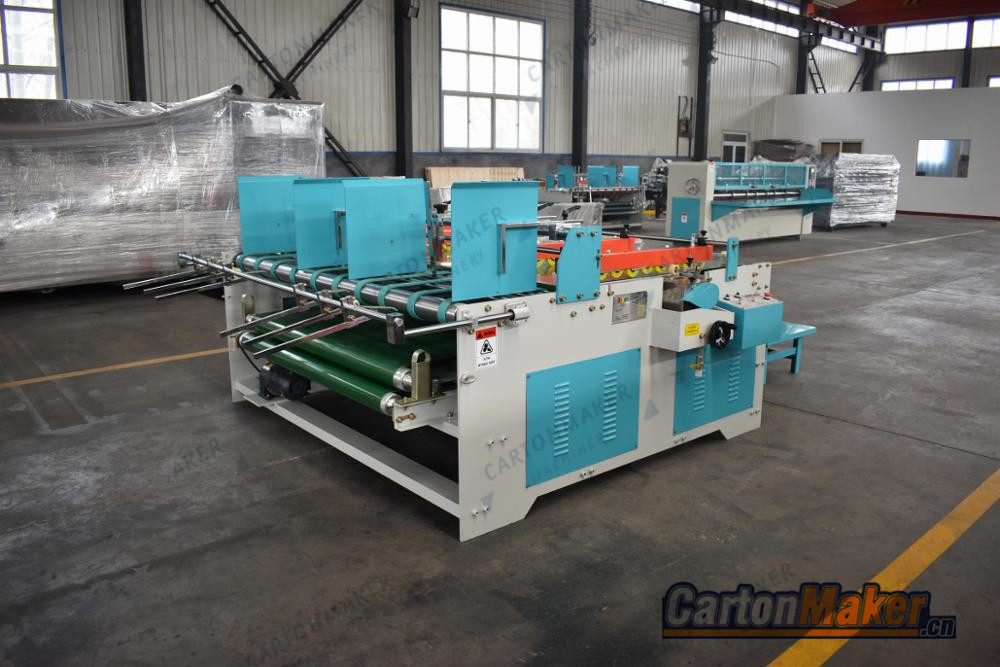

Semi Automatic Folder Gluer Machine(COMBINED PRESSURE)for Carton Box Glue Work
Where to buy?
- Product Description
Introduce:
According to the Small order of the user, it has a small Volume and cover an area of small. Easy operation without having experienced, Suitable for transform small batch products, Applicable range is very wide, Ordinary carton, Heterogeneous shape can be glued, Max Mechanical speed is 56m/min.
Description:
1)It has a small volume and cover small area
2)Easy operation without operation experience request, applicability range is wide.
3)Suitable for small quantity produce and simple to change variety.
4) Ordinary carton and heterogeneous shape can be glued,.
5)It saves glue and the glue dosage is one third of the manual glue dosage.
6)Maximum mechanical speed is 56m/min, efficiency is 4 times higher than manual operation.
7)Adhesive is strong, tidy and not leak glue, UV light membrane and plastic coated of sticky mouth section can be polished and removed by two-headed burnish implement, improving the glue adhesive and solve the difficulty of some cartons are easy to opening glue problem in some seasons.
8)With manual folding carton, it will improve the work efficiency and
9)suitable for wrong indentation line made by automatic machine, special abnormal shape and cartons with window on paperboard.
Feature:
1)Space saving
2)Mini folder gluer machine can be workable for both common box and special customzied box
3)It can be designed single head and double head (double head design increase the production speed
Specification:
(1800/2000/2200/2500 mm is available , customzied size is also no problem )
Model |
2000 |
2200 |
2500 |
Voltage |
According customer need |
According customer need |
According customer need |
Power & Hz |
3.2kw 50/60hz |
3.2kw 50/60hz |
3.8kw 50/60hz |
Weight |
1.0tons |
1.3tons |
1.45tons |
Overall size |
2500x2200x1300mm |
2700x2200x1300mm |
3000x2200x1300 |
Feeding Max size |
2000x1100mm |
2200x1100mm |
2500x1100mm |
Feeding Min size |
220x100mm |
220x100mm |
220x100mm |
Double Working Station |
950x1100mm/950x1100mm |
1050x1100mm/1050x1100mm |
1200x1100mm/1200x1100mm |
4.Different types of folder gluer machine description
Item | Pictures | description |
Semi auto folder gluer machine |
Semi auto type Just for standard box gluing
|
|
Pressing type semi auto folder gluer machine |
As long as the glue side in one line , it can be suitable for all special box gluing For small size box , we can make two pieces at the same time |
|
Fully auto folder gluer machine |
Fully auto folder gluer just for standard box gluing |
