It is widely used in carton printing machines, flexo printing machines, laminators and high-precision coating machines.

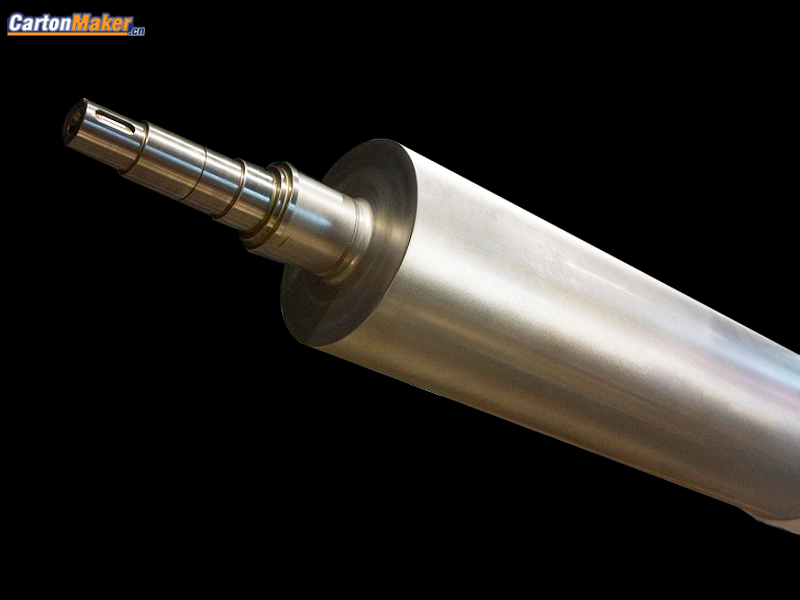

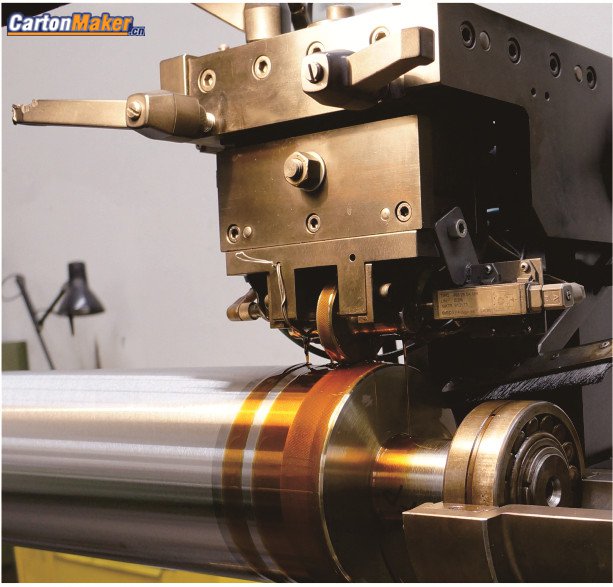

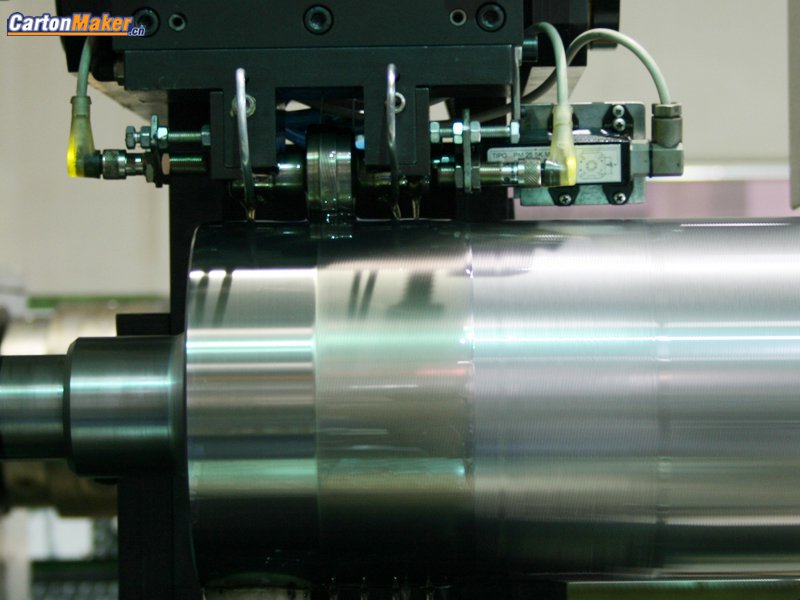

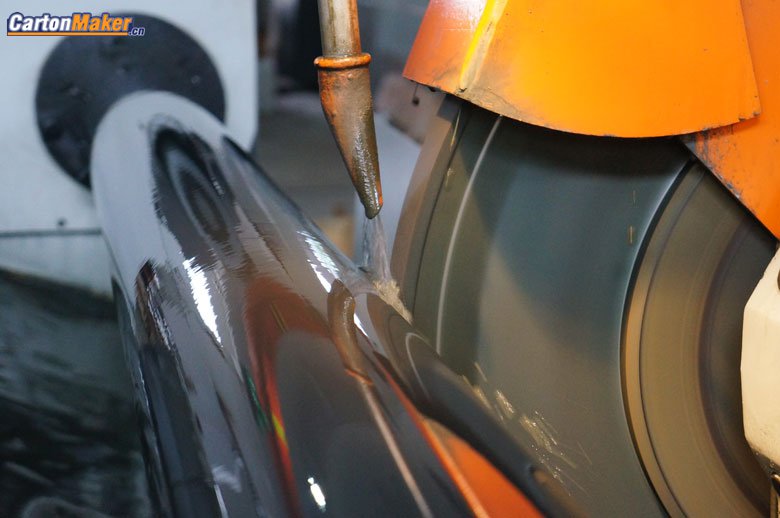

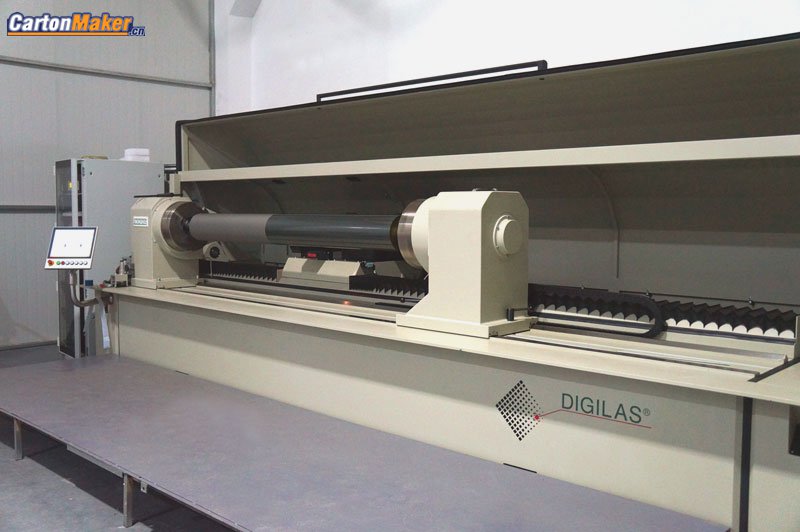

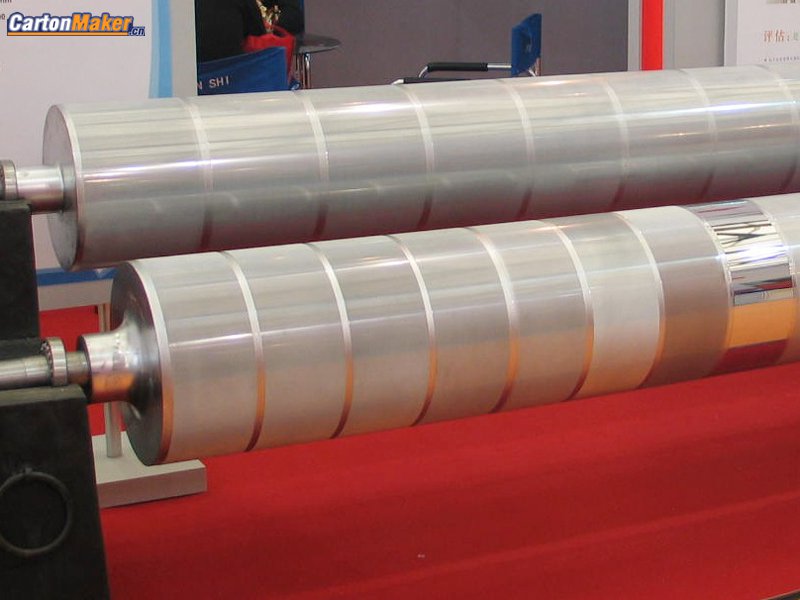

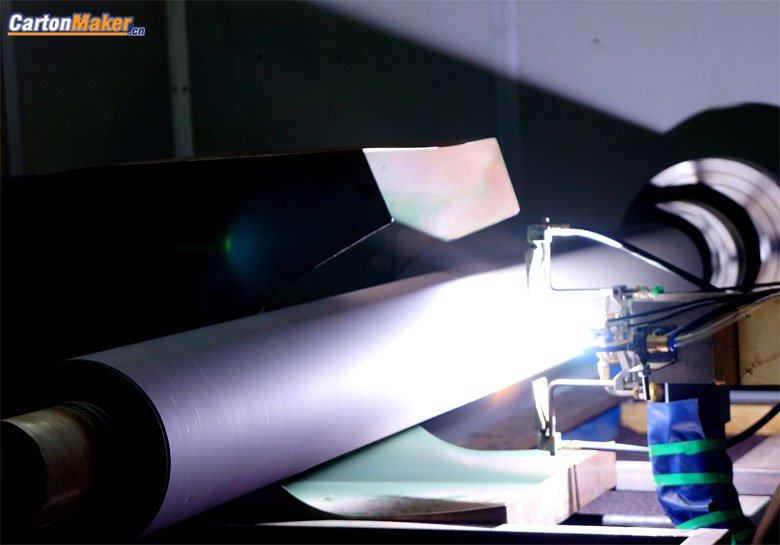

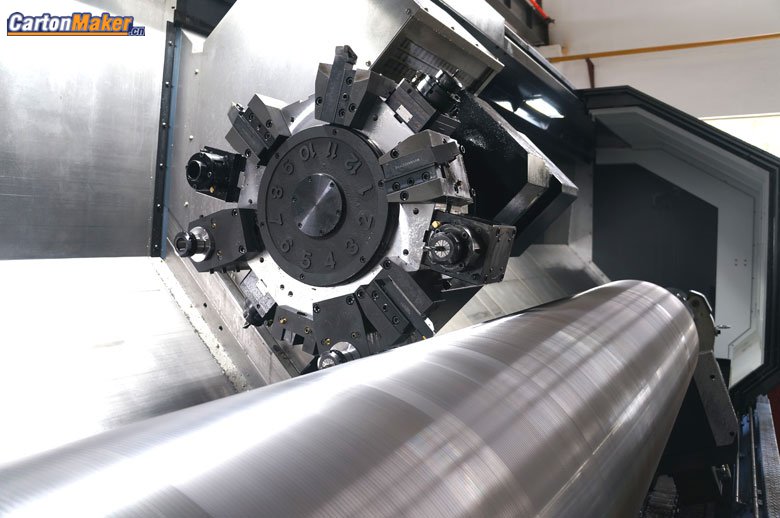

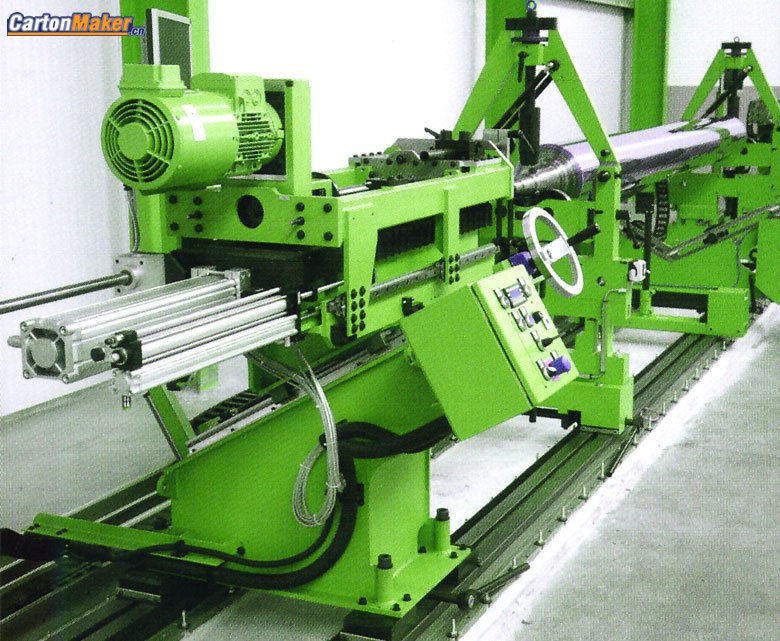

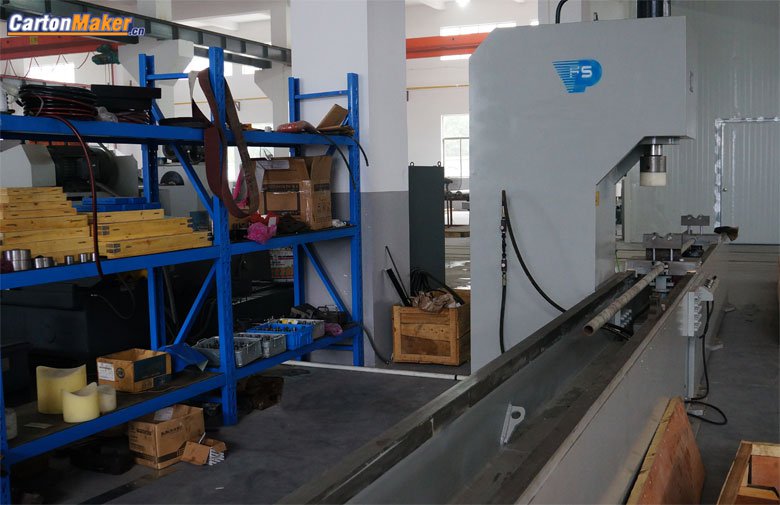

Roll Specification

Roll Diameter: φ50～780 mm

Surface Length:  L100～4600 mm

Screen Line:8～300L /in  （3～118线 L/cm ）

Cell Specification

Cell Shape: Hexagon, Diamond, Tri-helical and other special shapes

Cell Angle: 60°、45°、30°and other special requirements，Tri-heliacal 45～89°

Quality Precision

CylinderRunout: 0.015～0.03 mm

Cylindricity: 0.01～0.02 mm

Dynamic Balance Quality Level: G2.5


Dynamic Balance Quality Level: G2.5

NO.

screen line

volume

diamond cell geometry and volume

NO.

screen line

volume


Tri-helical cell geometry and volume

NO.

screen line

volume


tri-helical

diagonal truncated pyramid

diamond screen

hexagonal60°

diagonal pointed pyramid

hexagonal30°

quadrangular
