CHDESEN QMJ-HL2000 Flexo Ink Pump Pneumatic Single-Way Diaphragm Pump Gluer Pump for Corrugated Paperboard
0$USD 0$USD
Where to buy?
- Product Description
Description:

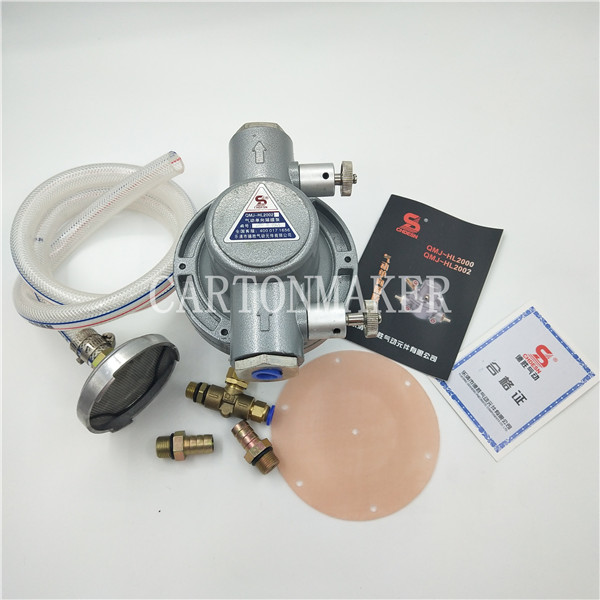

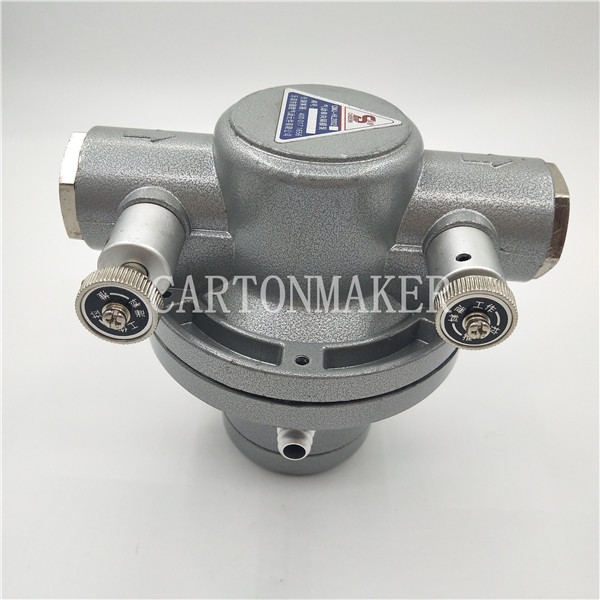

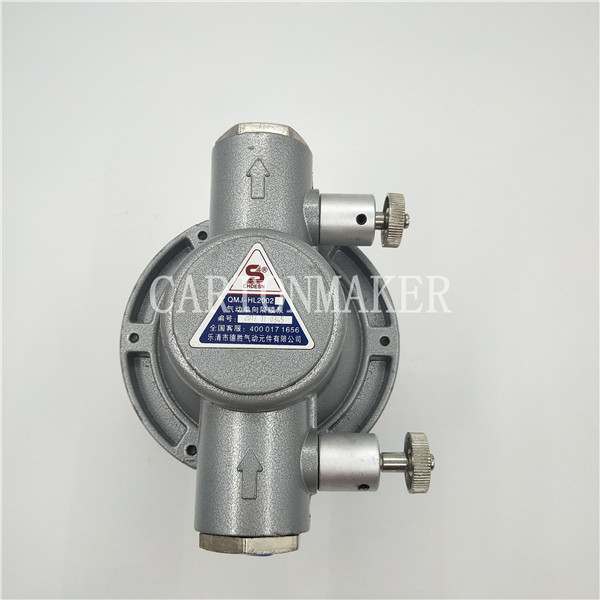

Name: Single-Way Diaphragm Pump
Model: QMJ-HL2000
Use for：Corrugated paperboard Carton printing machine, ink printing
Origin: Made in China
Parameter:
| Maximum Flow | 10L/min |
| Suction | 2m |
| Lift | 4m |
| Maximum Discharge Pressure | 0.5Mpa |
| Solid Particle Limits | 2mm |
| Air Pressure Range | 0.2-0.5Mpa |
| Material of Pump Body | Aluminum Alloy |
| Diaphragm Material | Nitrile Rubber |
| Thread | Inch |
| Fluid Inlet Caliber | G1/4 |
| Fluid Outlet Caliber | G1/4 |
| Air Interface | 1/4" |
| Model | QMJ-HL2000 |
| Package Size | 180*180*210mm |
| Weight |
2.6kg |
