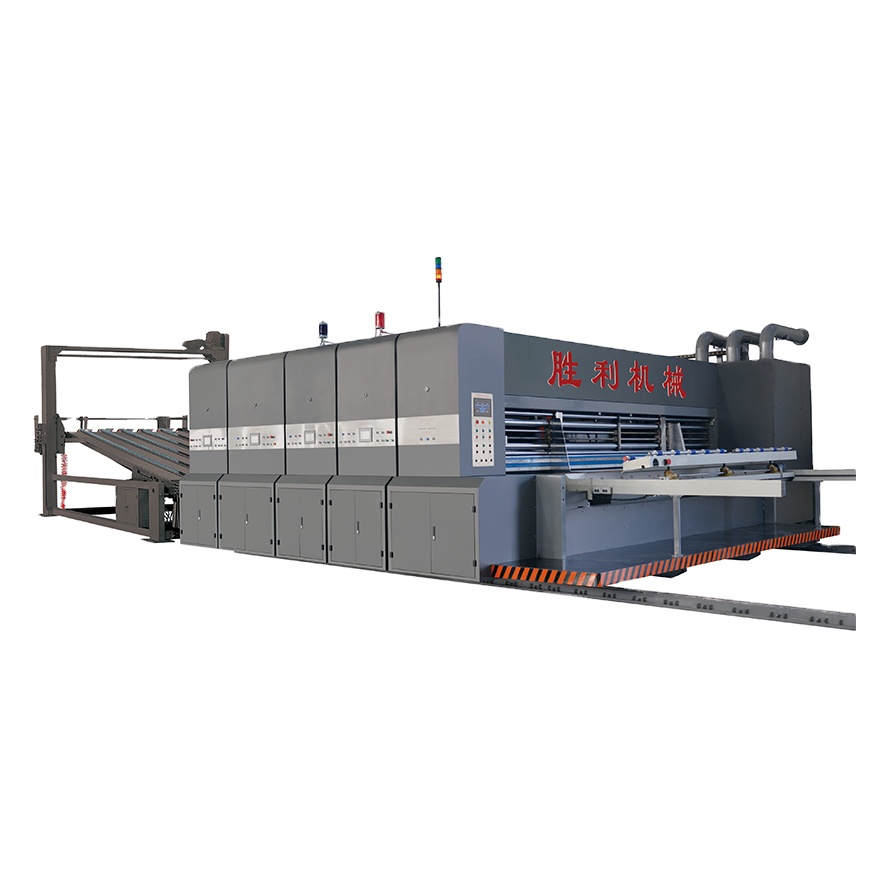

2500x4600mm YKW2546 Corrugated Paperboard Jumbo Flexo Printing Slotting Die Cutting Machine
Where to buy?
- Product Description
No. |
Item |
YKW2500*2500 |
YKW2500*3000 |
YKW2500*4000 |
YKW2500*4600 |
1 |
Width of inside machine |
2920mm |
3420mm |
4420mm |
5020mm |
2 |
Design speed |
100pieces/min |
100pieces/min |
100pieces/min |
100pieces/min |
3 |
Maximum feeding size |
2400*2500mm |
2400*3000mm |
2400*4000mm |
2400*4600mm |
4 |
Minimum feeding size |
650*900mm |
650*900mm |
650*900mm |
650*900mm |
5 |
Maximum printing size |
2400*2400mm |
2400*2900mm |
2400*3900mm |
2400*4500mm |
6 |
Printing precision |
±0.5/0.5/0.75 |
±0.5/0.5/0.75 |
±0.5/0.5/0.75 |
±0.5/0.5/0.75 |
7 |
Standard plate thickness |
7.2mm |
7.2mm |
7.2mm |
7.2mm |
8 |
Printing paperboard thickness |
5-15mm |
5-15mm |
5-15mm |
5-15mm |
9 |
Minimum slotting space |
320*100*320*100mm |
320*100*320*100mm |
320*100*320*100mm |
320*100*320*100mm |
10 |
Maximum slotting depth |
620mm |
620mm |
620mm |
620mm |
11 |
Printing roller axial adjusting |
±10 |
±10 |
±10 |
±10 |
12 |
Maximum die cutting size |
2400*2500mm |
2400*3000mm |
2400*4000mm |
2400*4600mm |
Function and characteristics
1、All of the electric appliances of the whole machine are of the brand of Schneider made in France.
2、Adopt leading edge feeding system.
3、Adopt helical gear driving,the gear are made of high frequency quenching and grinding material.
4、All of the transmission rollers are made of high-quality steel with abrasive grinding hard chrome plated surface.
5、The gears adopt spray circular lubricating.
6、The machine is equipped with PLC、touching screen,multi-function control,frequency converter,accurate and reliable.
7、Automatically reset,automatically correct plate.
8、Modular design,multi-color printing units can be combined in any way.
Feeding unit
1. Adopt five-axle lead-edge feeding .even accuracy, thin and bend paperboard easy to be feed in .
2. It can send the paperboard continuously or by partition equipped (with counting device )
3. Electric controlling the clutch of the machine platform and installed alams in order to assure the safe of the operating personnel while the bell rings constaintly during marching .
4. The electrical machinery of the main engine starts the protective device.(If the machine has not been locked.the main engine can not start revolving.)
5. The separating electrical machinery starts the protective device. (If the machine has been locked you can not start the separating electrical machinery.)
6. It can adjusting feeding paper running ,relieve feeding glue roller’s preesure .
7. dust collecting plant, brushes and the air blower can clear the dust and the paper scrap of the paperboard surface.
8. Left and right side blocking pland electric controll.
9. Back support-paper platform electric adjusted.
10. Paperboard feed gap is electric adjustment.
Printing Unit
1. The printing roller and trace pressing roller adopt High quality and do steel material.To grind the surface the hard chrome plating.
2. To correct by dynamic balance,so the revolving is steady.
3. To load and unload the printing plating and step on the switch.Electric controlling the positive and negative revolving.
4. The space of the printing & pressing roller can be adjusted by electric.The scale panel shows the data.
5. Phase-adjusting mechanism,planet type gear structure.
6. To adopt PLC & touching screen to control the printing phase by the way of electric digital type 360 degrees adjustment.Automatic plate correcting, automatic zero returning and high speed phase adjusting.
7. Printing phase fixed device,pneumatic brakes.While the machine separates or the phase is adjusting,the brakes can restrict the revolving of the machine platform and keep the fixed point of the original gears' position.
8. The distance of the horizontal adjusting the printing roller is 20 mm.
9. Rubber roller:The surface of the roller is steel pipe which is packed by the wear-resisting rubber.Adopting medium and high special grinding the rubber roller has effective ink-spreading.
10. Steel material net-grain roller:Steel pipe surface grinding.Press and make net-grain,hard chrome plating.
11. It sets up inking rollers rotation electric machine.Keeping main machine from stopping water and ink turning dry
Slotting Unit
1.Slotting phase adjusting mechanism,planet type gear structure.
2.Slotting phase is controlled by PLC & touching screen and adjusted by the way of electric digital type 360 degrees.(It can be adjusted while revolving and stopping.)
3.The creasing wheel gap adopt electric adjustment with the touch screen displays data.
4.The slotting knife seat gap adopt electric adjustment with the touch screen displays data.
5.The slotting and the creasing distance four axle adjusted by electrically synchronously.The height of paper chest four axle adjusted by electrically synchronously.
Die Cutting Unit
1. Die-cut phase and the gap between the cutter mould rollers are both controlled by computer,which can display but also can to set up.
2. The cushion roller adopts mechanical camdrum portable structure(40mm).
3. The gap between the cushion roller and the cutter mould roller adopts electrical adjustment.When stopping feeding paper,the soft roller will rise automatically;When working,the soft roller will return to the working position.
4. Adopt compentating system.No matter how much the cushion diameter changes,the speed of the cushion compentate and follow automatically,without adjustment by man.
5. With restoration for cushion after wear and tear.Keeping the surface of the cushion smooth.
