Introduce:

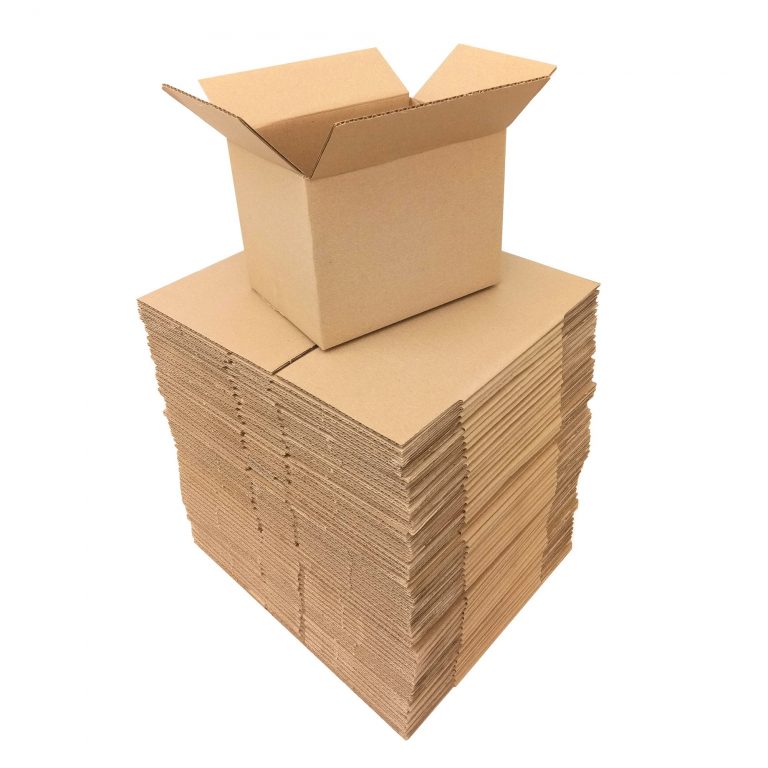

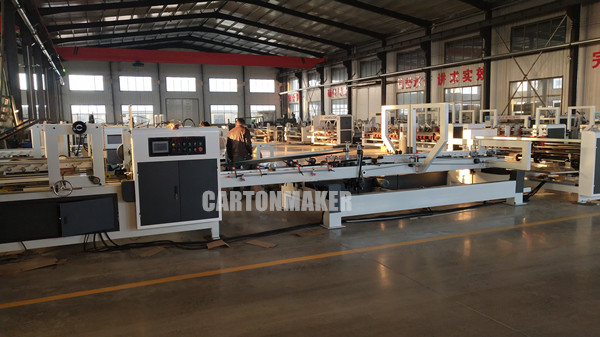

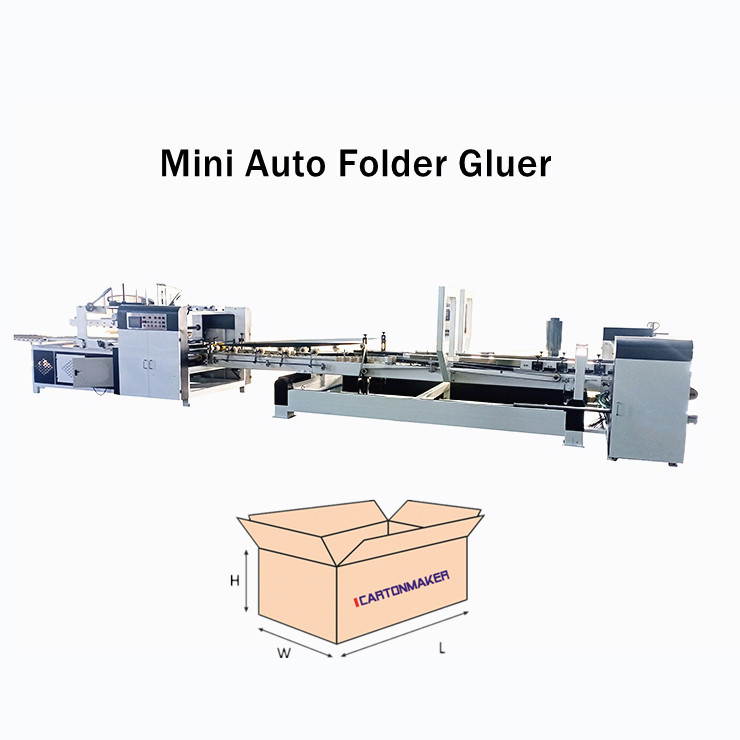

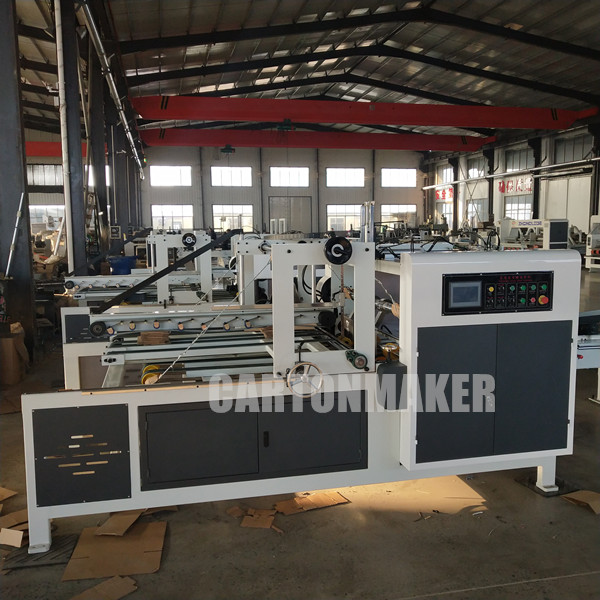

AFGM Series Automatic Folder Gluer Machine is specialize desgin for small courier box, composed of feeding part, glue and folding part, stacker part, speed controlled by PLC, paper width is adjusted by Touch PC, machine operation is easy and accurate, machine with automatic paper feeding function, automatic glue and fold function, automatic counting, automatic stacking and double conversion operation,this machine is your best choose which is energy-efficient and environmental protection.

Control Unit:

The touch screen input operation is simple and convenient. The machine adopts PLC controller and digital operation. The touch screen input can change data and speed without stopping. The machine can automatically feed paper, fold automatically, count automatically and output automatically.

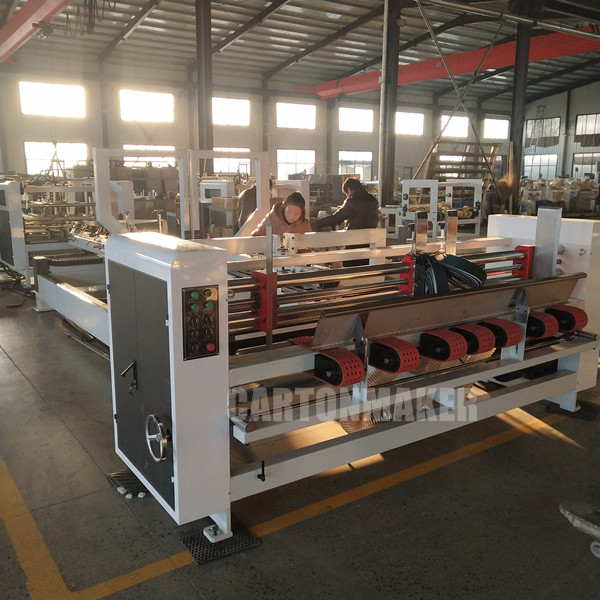

Feeder:

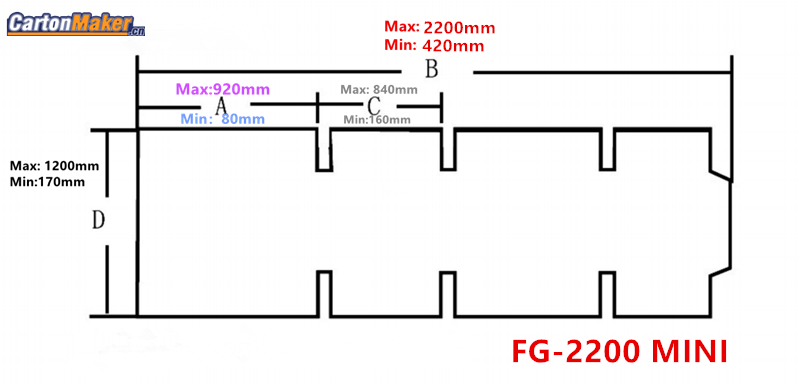

1) The cardboard height adjustment part uses high-quality steel, which can quickly adjust the carton of different specifications such as height and length. The cardboard thickness is adjusted manually, and the width of the cardboard is adjusted electrically.
2) The suction belt of the feeding section is made of high-tech materials, and the tension layer is seamlessly connected to the belt to protect the machine during operation.
3) The suction motor and the main motor of the feeding part adopt the Taiwan brand, which has high stability.
4) Adopt high-quality electromagnetic clutch and braking system, so that the paper feeding part can run single paper or continuously, and effectively control the waste of cardboard and output accuracy.
5) The feeding part can effectively reduce the manual operation error and improve the feeding stability.

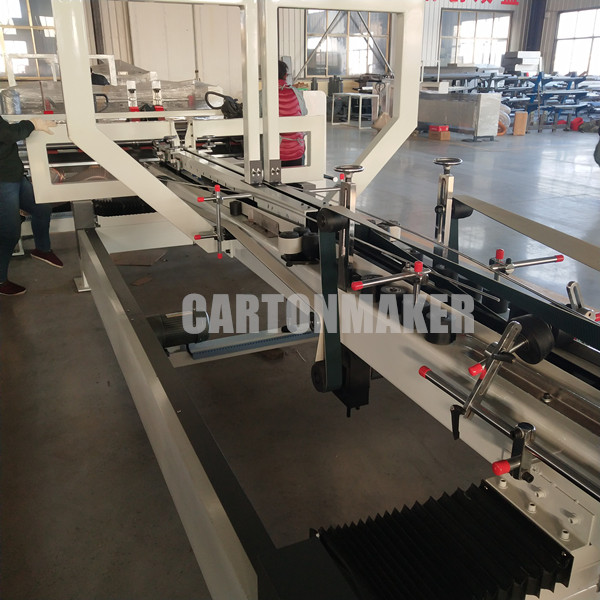

Folder and Gluer Unit:

1) The amount of glue is controlled by imported high-quality and stable motors, and the noise is low.
2) The gluing wheel is made of stainless steel, easy to clean, and the gluing is uniform. The width can be customized from 8mm to 30mm according to the size of the carton ears.
3) The drive belt of the folding part is made of Siegrin belt, which has a long service life and enables the cardboard to be folded accurately.

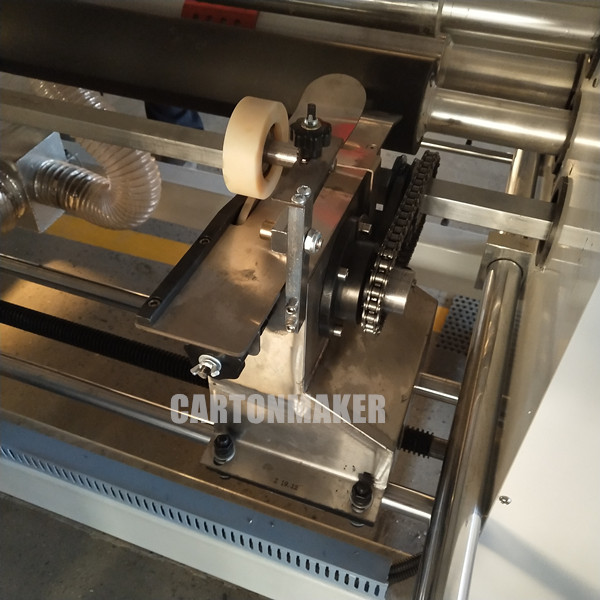

4) The folding device is equipped with a crease and correction device. The height of the crease wheel is adjustable to adapt to different thickness cardboard.
5) Equipped with a new patented secondary creasing device. If the first indentation is not good, the indentation device can indent the cardboard to achieve a good indentation

Counter and Stacker:

1) The characteristics of the machine of the correction part adopt the differential design of the polyurethane rubber wheel and the lower belt.
2) Using PLC programmable controller and touch screen, digital control. Quick response, accurate and reliable, easy to operate.
3) The counting output is pneumatic, reliable, accurate and fast.
4) Adopting a hanging conveying device, the cardboard is pressed out and output, which can hold more than 200 cartons, and the cartons can withstand pressure for a long time. It not only ensures the adhesive strength of the carton, but also effectively improves the compression of the carton, making the appearance of the carton more beautiful.
