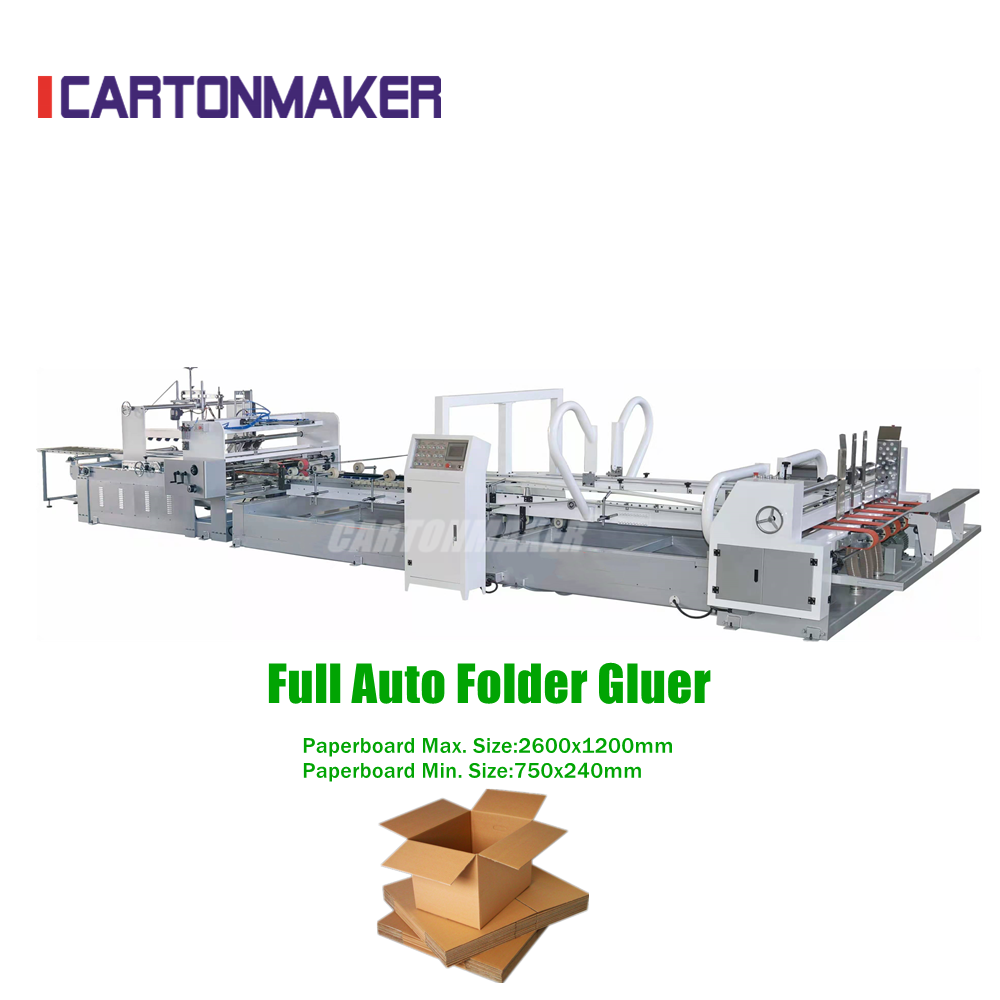

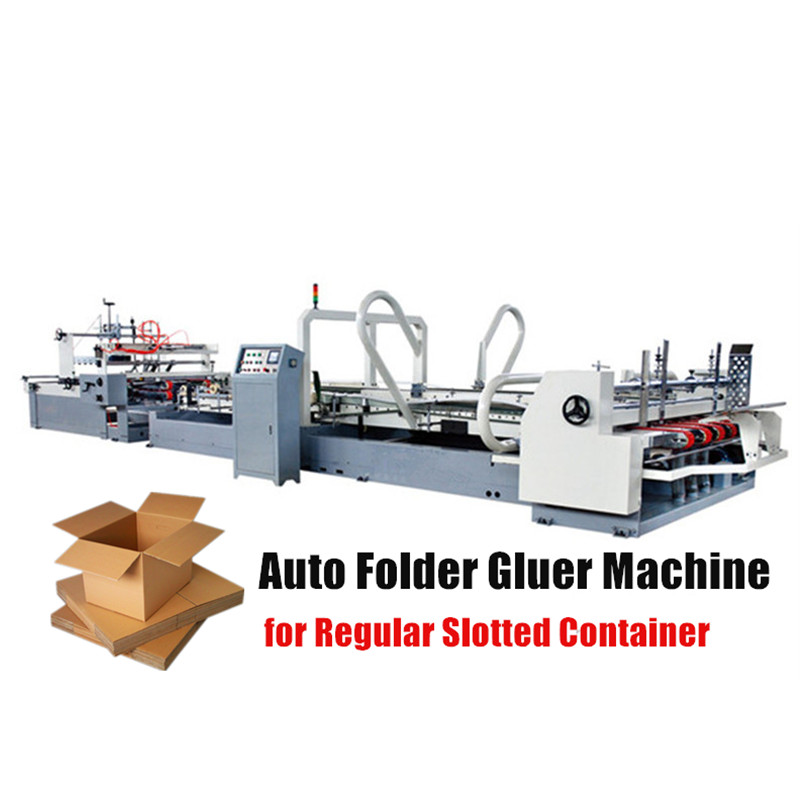

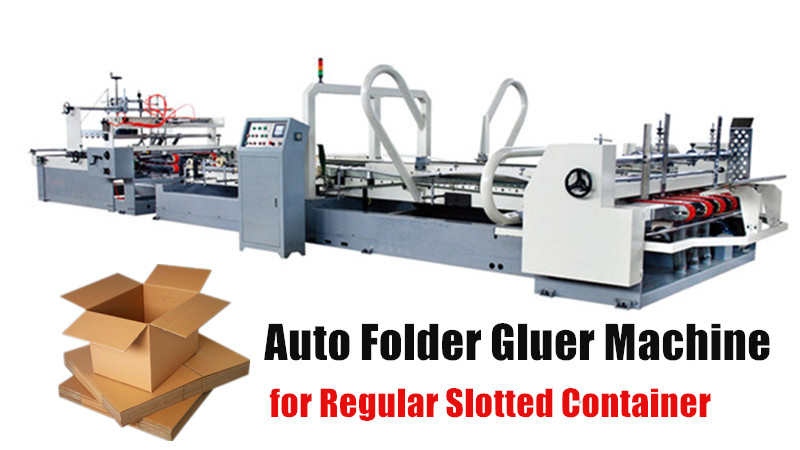

2400-A Heavy Type Full Automatic Folder Gluer Machine for Corrugated Carton Box Regular Slotted Container RSC Carton
Where to buy?
- Product Description
Introduction:
Automatic Folder Gluer Machine(Top Fold Type)) speed controlled by PLC, paper width is adjusted by Touch PC, machine operation is easy and accurate, machine with automatic paper feeding function, automatic glue and fold function, automatic counting, automatic stacking, the normal speed is 100-130m/min, this machine is your best choose which is energy-efficient and environmental protection.
Include:
- Control Unit
- Auto Feeder Unit
- Auto Gluer and Folder Unit
- Correction Stacking Output Unit
- Control Unit
Touch Screen Input operation is easy, machine adopt PLC controller, digital operate, touch screen input which can change date or speed or others without stop machine
- Feeding Unit
1) Paperboard height adjustment part is adopt high quality steel, can quick adjust different specification cartons, such as height and length.
2) The suction belt of feeding part adopts the high-tech materials, tension layer seamless joint the girdle which protect machine everything well in running.
3) Adopt the high quality electromagnetic clutch and brake system so that make feeding part can be single paper or continuous operation which effective control the paperboard waste and output precision.
- Folder and Gluer
1) Seamless joint ring conveyor belt of folding part adopt imported special material which is high friction and high wear-resisting, can finish automatic folding accurately
2) Gluing part adopt high quality stainless steel gluing wheels, glue coated evenly,and can efficient to save glue. Bottom gluing type, Glue width 20-25mm(it can customized according to customer requirment)
3) According to the box-shaped glue box, it can move left and right, and the glue is evenly spread, the glue quantity is stable, and the glue is saved and efficient
4) The folding part is equipped with three pressure line correction devices, which can accurately and effectively correct the deviation of the paperboard flute line, so that the entire carton can be folded the most accurately, and the occurrence of the scissors can be well controlled.
5)The folding arms can adjust by computer and remote controller.
- Correction Stacking Output Unit
1) Stacking part has functions of auto-counting, stack neatly and stacking output, customer can set the output number of cartons by himself.
2) Differential correction,Second correction to eliminate the scissors,it can adjust without stop the machine.
3)The flapping part makes the carton shape well
Technical Parameters:
Model |
2400-A |
2600-A |
2800-A |
Max. Paperboard |
1100×2300mm |
1200×2600mm |
1200×2800mm |
Min. Paperboard |
240×750mm |
240×750mm |
240×750mm |
Machine Size |
3500×15500mm |
3800×15500mm |
4000×15500mm |
Power |
10.5kw |
10.5kw |
10.5kw |
Suitable | 3/5ply Single sheet forming | 3/5ply Single sheet forming | 3/5ply Single sheet forming |
Electrical Cconfiguration
Name |
Brand |
Origin |
PLC |
Delta-20EH |
Taiwan |
Touch Screen |
MCGS 7" |
Shenzhen, China |
Contactor |
Schneider/0901 |
Germany |
Intermediate relay |
Omron |
Japan |
Emergency stop |
CHNT |
CHINA |
Button |
Siemens |
Germany |
Key switch | Siemens | Germany |
Limit switch |
CHNT |
CHINA |
Photoelectric switch |
Pefun |
CHINA |
Connector Terminal |
Pefun/1530 |
CHINA |
Cooling fan |
|
CHINA |
electric bell |
|
CHINA |
Thermal overload relay | Schneider |
Germany |
Air switch 3P |
Schneider | Germany |
Air switch 1P |
Schneider | Germany |
Large load rectangular plug-in |
|
CHINA |
Aviation plug-in |
|
CHINA |
transformer |
300VA |
CHINA |
Frequency converter |
Delta-M |
Taiwan |
Motor | OTG | Shanghai, China |
Stepless speed regulation and rubbing timer | Chun mu | Shanghai, China |
Electromagnetic clutch and electromagnetic brake | Shanghai, China | |
Belt | Sieglin |
Germany |

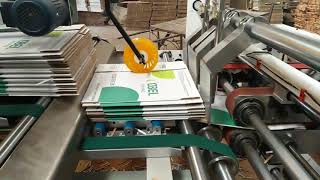

Video
