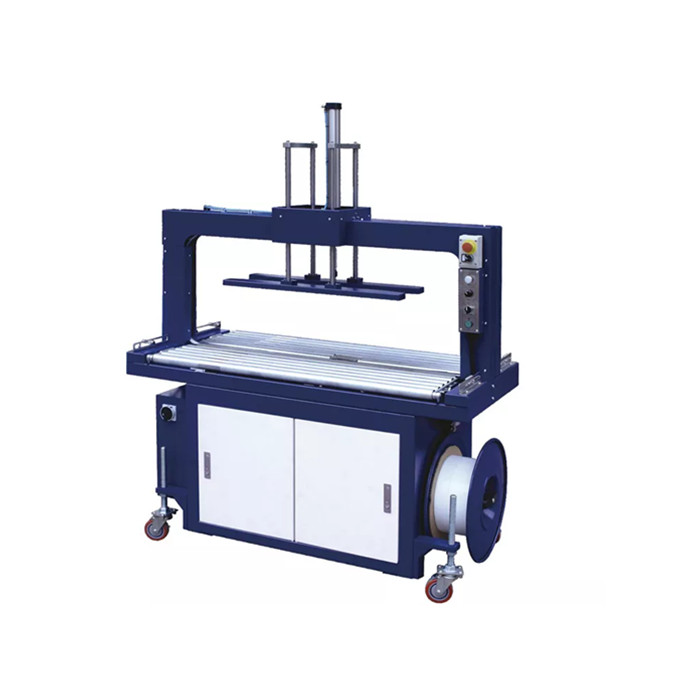

Automatic Tying Machine with Motorized Steel Rollers Double Tamper PP Plastic Strapping Machine YS-305RP

0$USD 0$USD

Machine Features:

1. Automatic strapping machine for PP strapping material(Polipropilene)

2. Strap width 5mm

3. Tough and compact construction with a small footprint

4. Simple, safe and user-friendly operation

5. Mobile, with roller worktable and high capacity strap reel

6. Strap tension adjustable from soft to high

7. Electronic heater temperature control

8. Automatic strap feeding system

9.  Automatic strap ejection at the end of the strap coil

10. Working table with motorized roller conveyor

11. Double pneumatic top press

Technical Specifications

Model

YS-305RP (with power-driven roller worktable)

Category

Strapping machine

Degree of Automation

Automatic

Speed

High-speed

Power Supply

1P, 220V/50-60Hz, 1.0kW, 7A

Packing Speed

≥30 cycles/min.

Tension Rage

0 - 45kg

Arch

W1250mm * H500mm (size customizable)

Hot-adhering position

Bottom

Worktable Height

≥ 760mm adjustable (not including the wheel's height)

Applicable PP Strap

Width: 5mm-6mm, thickness: 0.5-0.8mm (to be specified)

Applicable Strap Reel

210mm * 178mm

Control System

PC board control + PLC control SIEMENS

Machine Dimensions (mm)

L1520*W680*H1500

Package Dimensions (mm)

L1600*W800*H1600

Machine Weight (kg)

N.W:250  G.W: 300

Noise ≤75dB(A)
Environmental Conditions Humidity≤98%, temperature 0-40℃
Adhesion Adhesive surface≥90%, adhesive width≥20%, deviation of adhesive position≤2mm
